| Product Name: | New Advanced Automatic Test Mode Temp Humidity And Salt Spray Combined Chamber For Neutral Salt Fog Test | Internal Size: | 160*100*50(cm） (L*W*H) |
|---|---|---|---|
| External Size: | 200*190*140(cm） (L*W*H) | Weight: | 550KG |
| Temp Range: | 25℃～80℃ | Humidity Range: | 20%~98%RH |
| Heating Rate: | 10℃→+80℃≤35 Min | Warranty: | 1 Year |
| High Light: | salt spray test equipment,salt spray corrosion test chamber |
||

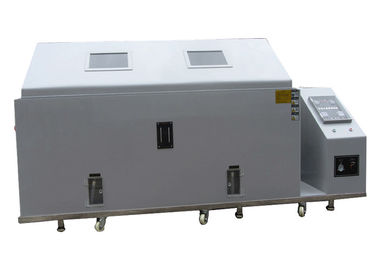

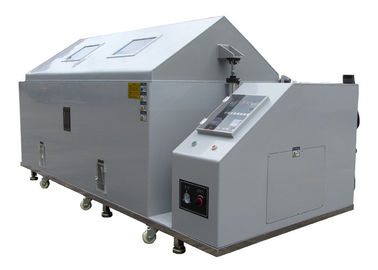

New advanced automatic test mode temp humidity and salt spray combined chamber for neutral and acid salt fog test
Specification:
| Model | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 | |
|---|---|---|---|---|---|
| Interior Test Chamber Dimension(cm)(L×W×H) |
90×50×60 | 120×80×50 | 160×100×50 | 200×100×50 | |
| Exterior Test Chamber Dimension(cm)(L×W×H) | 141*145*140 | 190*165*140 | 200*190*140 | 240*200*140 | |
| Capacity of the chamber(L) | 270L | 480L | 800L | 1000L | |
| Temperature&humidity of the operating environment | +5°C~ +35°C / <85%RH | ||||
| Air pressure | 86~ 106Kpa | ||||
| Lab. temperature | NSS ACSS 35°C±1°C | ||||
| CASS 50°C±1°C | |||||
| Pressure barrel temperature | NSS ACSS 47°C±1°C | ||||
| CASS 63°C±1°C | |||||
| Temperature&humidity Control Accuracy |
Test room temperature range: +0℃～+85℃ | Relative humidity: 20%～98%RH(±3%) | |||
| Saturated barrel temperature: 47℃～70℃ | Temperature/humidity uniformity: ≤±2℃ ≤±3% | ||||
| Temperature resolution: 0.01 ℃ | Humidity Resolution: 0.1% RH | ||||
| Temperature fluctuation: ± 0.5 ℃ | Humidity fluctuation: ± 2% RH | ||||
Usages:
The Salt Spray Combined Climate Tester is to test: If surface of different material can adopt the corrosion resistance, as well as changes in temperature and humidity after the plating, anodic treatment, spraying, anti-rust oil and other anti-corrosion treatment. This machine is designed to test the influence of salt pollution that might accelerate the corrosion on the metal material outdoors. The device contains the circulation of the sample to the salt fog, dry, hot and humid environment test method.
Application:
For all types of electronic products quality inspection , electric appliance, and communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries products.
More Reliable:
Global safety design, use our chambers safely and with peace of mind for many years to come.
We deliver chambers that conform to international safety standards.
Our chambers conform to ISO risk assessment as well as global safety design electrical safety standards such as CE marking and EMC directive.
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for New advanced automatic test mode temp humidity and salt spray combined chamber for neutral and acid salt fog test.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
Company Introduction:
Dongguan Xinbao Instrument Co., Ltd, with owner brand of OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978.
OTS has two main production bases over 3 0, 0 0 0m² each in Taiwan and Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines, so customers can check the function and quality immediately. What’s more, OTS has many finished equipment in stock to satisfy customers need in time. In the meanwhile, every machine must be examined before shipment and with lifetime maintenance service.
With the exquisite manufacturing process, an innovative development and research team, a professional sales team and excellent after-sale service, OTS is ready to take part into international market and set an example in this field.
