Product Details:
Payment & Shipping Terms:
|
Product Name: | Laborary Benchtop Nozzle And Filter Salt Spray Testing Machine For Aluminum Alloy Test | Inside Temperature: | Brine Test Method(NSS ACSS)35°C±1°C/Corrosion Resistance Test Method (CASS)50°C±1°C |
---|---|---|---|
Spray Method: | Continuous / Periodic Spraying; Can Be Programmable | Warranty: | 1 Year |
Volume Of Test Chamber: | 108L | Body Material: | SUS#304 Stainless Steel Plate |
Volume Of Pressure Bucket: | 15L | Outside Dimension: | 107*60*118cm |
High Light: | salt spray corrosion test chamber,salt spray cabinet |
Laborary benchtop nozzle and filter salt spray testing machine for aluminum alloy test
Laborary benchtop nozzle and filter salt spray testing machine for aluminum alloy test is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Specification:
Model | XB-OTS-60 | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 |
Inner size (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x100x50 |
External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x120x140 | 270x150x150 |
Inside temp | Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method. | ||||
(CASS)50°C±1°C | |||||
Brine temp | 35°C±1°C 50°C±1°C | ||||
Test chamber volume | 108L | 270L | 480L | 800L | 1440L |
Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
Test room relative humidity | 85%RH or more | ||||
PH | 6.5~7.2 or 3.0~3.2 | ||||
Spray method | Programmable spray (including the continuous spray interrupted spray) |
Features:
1.The Laboratory Nozzle Salt Spray Corrosion Test Chamber is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.
2.A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3.Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4.Control System High precision P.I.D. temperature control meter with its error ±0.1°C.

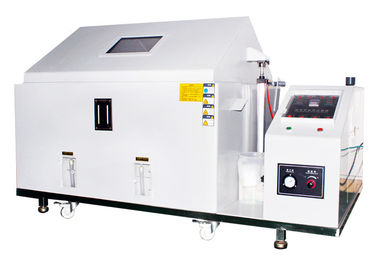

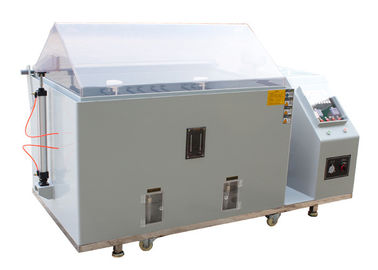

Detailed Picture:
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for Laborary benchtop nozzle and filter salt spray testing machine for aluminum alloy test.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
FAQ:
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Welcome to contact with us if you have any inquiry. Thank you!
