Cooling ±0.5kPa (4~40pKa) Separated Premium Quality High Altitude Simulation Chamber, Water and electricity system

Cooling ±0.5kPa (4~40pKa) Separated Premium Quality High Altitude Simulation Chamber,  Water and electricity system
Cooling ±0.5kPa (4~40pKa) Separated Premium Quality High Altitude Simulation Chamber,  Water and electricity system Cooling ±0.5kPa (4~40pKa) Separated Premium Quality High Altitude Simulation Chamber,  Water and electricity system

Large Image :  Cooling ±0.5kPa (4~40pKa) Separated Premium Quality High Altitude Simulation Chamber, Water and electricity system

Product Details:
Place of Origin: Dongguan, Guangdong, China (Mainland)
Brand Name: OTS
Certification: ISO, CE......
Model Number: XB-OTS-504M
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Strong standard wood case for High Altitude Environmental Test Chamber Simulated Altitude Test Box
Delivery Time: 30 working days after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 232 Units/ Month
Detailed Product Description
Inner Size (D*W*H): 800*700*900 Mm Temp Range: -70°C~+150°C
Cooling Rate: 0.7c~1.0c/Min (Average) Internal Chamber: Stainless Steel(SUS304)
Temp Fluctuation: ±0.5% Pressure Range: 101kpa ~1kpa
Controller: Touch Screen Controller Power Supply: AC380V/50Hz, 3phase 4 Wires+ Ground Wire
High Light:

altitude simulation chamber

,

humidity and temperature controlled chamber

Premium Quality Environmental Control Chamber , Environmental Test Chamber External Humidifying Design



Introduction:

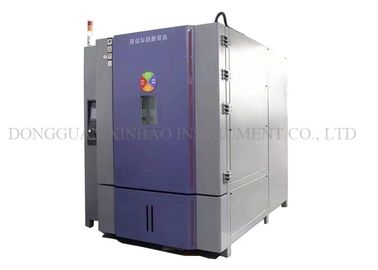

High Altitude Environmental Test Chamber Simulated Altitude Test Box is used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.





Technical parameters:

Model XB-OTS-252M XB-OTS-504M XB-OTS-1000M XB-OTS-2160M
Inner Size (D*W*H)mm 600*600*700 800*700*900 1000*1000*1000 1200*1400*1200
Capacity(KW) 11 15 16 18
Chamber Volume(L) 252 504 1000 2160
Specifications Temp range -70℃~+150℃ -70℃~+150℃ -70℃~+150℃ -70℃~+150℃
Temp fluctuation ±0.5%
Temp deviation ≥100℃, ±3.0℃(at 101kPa, ATM no load)
<100℃, ±2.0℃(at 101kPa, ATM no load)
Cooling rate 0.7℃~1.0℃/min (Average)
Pressure range 101kPa ~1kPa
Pressure accuracy ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa)
Depressurization rate 101kPa ~1kPa≤30mins (Room temp)
Pressure recovery rate 10kPa/Min(adjustable)




Material
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)



Optional parts
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.


Structure
Overall structure: the new design is easier to operate and maintain.

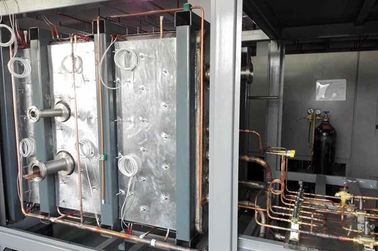

Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.



Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode



Standard configuration
Two sample holders; an observation window; φ25 or φ50 cable hole.

Safety devices
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The overheating protection of compressor
9. The over-current protection of compressor
10. The over-current protection of vacuum pump
Cooling ±0.5kPa (4~40pKa) Separated Premium Quality High Altitude Simulation Chamber,  Water and electricity system 0

Features
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application



Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE


Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
