Product Details:
Payment & Shipping Terms:
|
| Drop Height: | 300~2000 Mm | Specimen Max. Size (L*W*H): | 1000*1000*800 Mm |
|---|---|---|---|
| Drop Method: | Face, Edge, Angle | Transmit Approach: | Electric Transmission |
| Design Criteria: | ISO 2248, JIS Z0202-87, GB T485 | Horsepower: | 1/2 HP |
| Specimen Max. Weight:: | 100 Kg(Can Be Customized) | Drop Platform Area: | 1400*1200*1940 Mm |
| Control Box Size (L*W*H): | (L*W*H): 350*350*1100 Mm | Usage: | Drop Tester |
| Power: | Electronic | ||
| High Light: | mechanical tensile testing machine,universal tensile tester |
||
Drop Test Machine,Dop Testing Equipment Price,Customized Available Dop Testing Equipment
Introduction

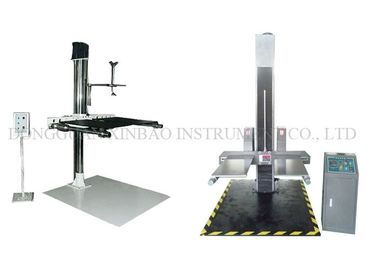

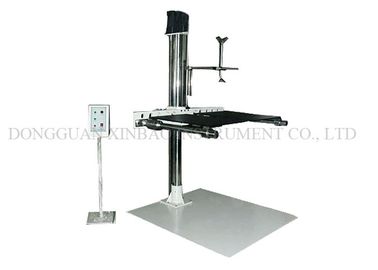

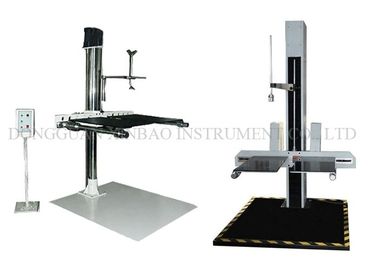

Customized Available Dop Testing Equipment Price,Drop Test Machine used to measure the dropping impact incidence when the package in using, transportation and decorating. Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this Drop Tester simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be teste.
Specification
| Model | XB-OTS-220B |
|---|---|
| Type | Double arm supporting the specimen |
| Test height(mm) | 300-1500mm |
| Test space | 1200*1700*1500mm (W*D*H) |
| Max. specimen weight | 60 KG |
| Overall weight | 400Kg |
| Overall size(mm) | 1200*1500*2100mm |
| Base plate size | 1200*1400mm |
| Single Arm size | 300*750mm |
| Control method | By electronic controller box |
| Dropping method | Pneumatic cylinder |
| Height display | LCD display reads drop height |
| Height adjustment | Servo motor controlling precision guiding |
| Buffer type | Oil pressure absorbability |
| Power | AC220V 50Hz 1 Phase |
| Comply with ISTA-1A ISO2248-1972(E), JIS Z0202-87,GB/T4857, 5-92. | |
Feature
1. The spindle is used by precision grinding shaft lever, high precision, good stability
2. LCD screen displays multi-parameter.
3. Power failure safety design, keeping the original state when the power is failed.
4. Up and down lifting limitation setting
5. Adopt single arm supports test object.
6. Swing arm system is controlled by air pressure.
7. Free adjust pressure and speed up to 2G with object weight.
8. Test elctronic parts, finished products or angle surfae of the package container.
9. Decompression change design, low noise.
10. Best after sales service: One year free parts maintenance.
11. Meet international test standards.
12. Customization is available & welcomed.
(1). Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
Why Choose Us?
1. Customer first,our staff always give top priority to customer experience.
2. Fast delivery,we can delivery your order within one week when the items in stock,we will proposal most suitable delivery way with it cost base on your order and discharge port.our cooperated forwarder will dispatch your order in safety way.
3. Professional engineers responsible for specialized products,they are trained in our factory for a long time professionals,to provide you with the best solutions and after-sales service.
4. Long-term use of the product to verify its accuracy,must be rigorously tested before shipment to ensure that the product delivered to the customer can be sucessfully used.
5. We provide at least one year free accessories for our products if need to be replaced,including courier costs,life-long technical support.
