Payment & Shipping Terms:
|Temp Range:||-70°C~+150°C||Inner Size:||1200*1400*1200 Mm(D*W*H)|
|Temp Fluctuation:||±0.5%||Controller:||Touch Screen Controller|
|Internal Chamber:||Stainless Steel(SUS304)||Pressure Range:||101kpa ~0.5kpa|
|Cooling Rate:||0.7c~1.0c/Min (Average)||Power Supply:||AC380V/50Hz, 3phase 4 Wires+ Ground Wire|
high altitude chamber,
humidity and temperature controlled chamber

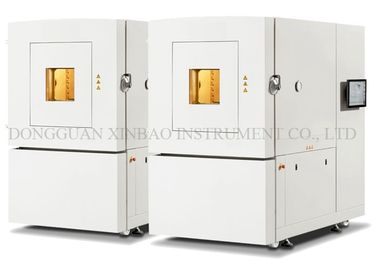

CE Certificated Battery Simulate High Altitude Low Pressure Test Chamber is used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.
|Inner Size (D*W*H)mm||600*600*700||800*700*900||1000*1000*1000||1200*1400*1200|
|Temp deviation||≥100℃, ±3.0℃(at 101kPa, ATM no load)|
|<100℃, ±2.0℃(at 101kPa, ATM no load)|
|Cooling rate||0.7℃~1.0℃/min (Average)|
|Pressure range||101kPa ~1kPa|
|Pressure accuracy||±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa)|
|Depressurization rate||101kPa ~1kPa≤30mins (Room temp)|
|Pressure recovery rate||10kPa/Min(adjustable)|
Two sample holders; an observation window; φ25 or φ50 cable hole.
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The overheating protection of compressor
9. The over-current protection of compressor
10. The over-current protection of vacuum pump
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet

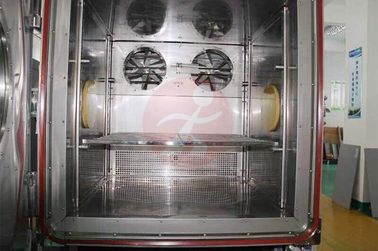

3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license
Customer Support Services
Ø Training (Training customer employees)
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
CE Certificated Battery Simulate High Altitude Low Pressure Test Chamber from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. Do you have a branch company or service office in my country?
We have offices in the belowing:
The US Office: XIN BAO INSTRUMENT (US) LLP
Address: 1201 N Park Ave Tucson AZ 85719
Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD
Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.
Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd
Tel: (+65) 96857857
Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349
Italy Dealer :AMSE SRL
Address: Strada della Cebrosa 86, 10156 Torino Italy
Suzhou Branch: XIN BAO INSTRUMENT SUZHOU BRANCH
Tel:0512-67078249 Fax: 0512-67078749
Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province
Taiwan : TAIWAN XIN BAO INSTRUMENT CO.,LTD
Address: No. 551-1, 4, Central Road, Taichung City, Taiwan
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.
