| Motor: | Servo Motor | Test Speed: | 1~500 Mm/min Selectable |
|---|---|---|---|
| Stroke Resolution: | 0.1mm | Force Precision: | ±0.5% |
| Max.Acceleration(G): | 17 | Test Stroke: | 600mm (without Grips) |
| High Light: | tensile strength testing equipment,universal tensile tester |
||
Applicable Industries:

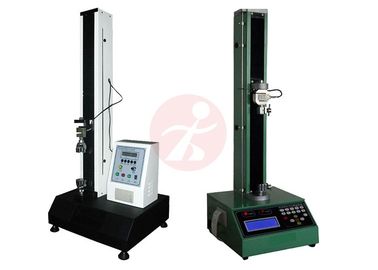

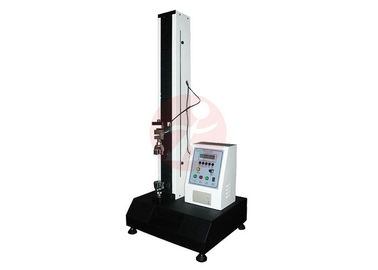

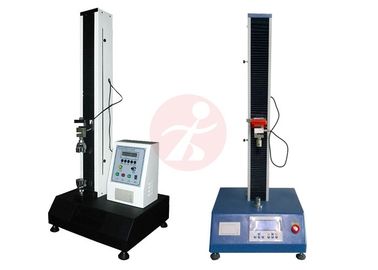

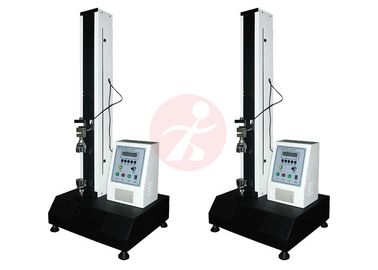

This machine can test various materials (both finished and semi-finished products ) of tensile strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
The testing machine is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ..and other physical test performance.
Technical parameters
| Model | XB-OTS-600(200KG) |
|---|---|
| Force capacity | 1000kg,2000kg,5000kg(It is optional.) can be setting |
| Induction method | Precision load cell (sensor) |
| Max. Load Capacity | 2KN |
| Force Resolution/Accuracy | ± 0.5% |
| Accuracy class | 0.5 |
| Resolution | 1/1,000,000 |
| Test width | 400mm(Standard specifications special specifications can be customized) |
| Test stroke | 850mm |
| Stroke Resolution | 0.01mm |
| Speed range | 0.5-500mm/min |
| Machine Dimension (W*D*H) | 800×530×1600mm (L*W*H) |
| Power system | Servo drive + servo motor + precision ball screw transmission (Panasonic or Taiwan king serve import) |
| Displacement Control | Displacement encoder count with four frequency technology |
| So that the displacement of four times | |
| the resolution can up to 0.0005mm |
Force system: servo drives + servo motor + precision ball screw drive
Control system:Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System : TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher
Obtain data: The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics
Corresponding Standard:
ASTM D903,F2258,GB/T 2790/2791/2792, CNS-11888,JIS K6854,GB/T 6329,BS EN 14410-2003,YY/T 0729,GOST 21751 and other standards.
1. Customer first,our staff always give top priority to customer experience.
2. Fast delivery,we can delivery your order within one week when the items in stock,we will proposal most suitable delivery way with it cost base on your order and discharge port.our cooperated forwarder will dispatch your order in safety way.
3. Professional engineers responsible for specialized products,they are trained in our factory for a long time professionals,to provide you with the best solutions and after-sales service.
4. Long-term use of the product to verify its accuracy,must be rigorously tested before shipment to ensure that the product delivered to the customer can be sucessfully used.
5. We provide at least one year free accessories for our products if need to be replaced,including courier costs,life-long technical support.
