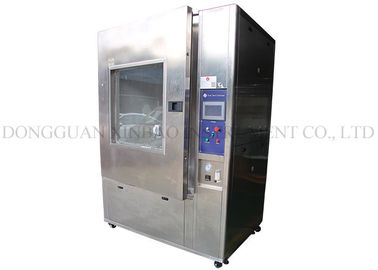

Centrifugal Fan Lab Test Chamber , Stainless Steel Sand Dust Test Machine For Electronic Products

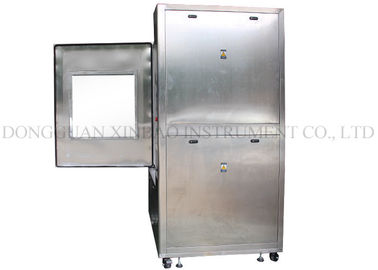

Centrifugal Fan Lab Test Chamber , Stainless Steel Sand Dust Test Machine For Electronic Products

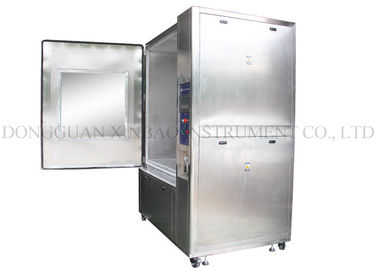

Centrifugal Fan Lab Test Chamber , Stainless Steel Sand Dust Test Machine For Electronic Products
video play

Large Image :  Centrifugal Fan Lab Test Chamber , Stainless Steel Sand Dust Test Machine For Electronic Products

Product Details:
Place of Origin: China
Brand Name: OTS
Certification: CE Certification
Model Number: XB-OTS-1000P
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for Stainless Steel Sand Dust Test Chamber For Electronic Products
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Model Numbe: XB-OTS-1000P Product Name: Stainless Steel Sand Dust Test Chamber For Electronic Products
Dust Concentration:: 2kg/m3~5kg/m3, Should Be Replaced Dust Type: Powdered Cement, Dry Talcum Powder
Blower: Centrifugal Fan Environment Temperature And Humidity:: 15~45c, 45~75%Rh
Sieves Hole Size: 75um Wire Netting Wire: 50um
Dimension: All Size Customized
High Light:

climate control chamber

,

temperature and humidity chamber

Stainless Steel Sand Dust Test Chamber For Electronic Products



Introduction



    This sand dust test chamber is used to simulate the natural climate sand on the destructive nature of the product, suitable for testing the product shell sealing performance, mainly for the enclosure protection level standard IP5X and IP6X two levels of the test.

Vertical circulation of the air with dust, and the test dust can be recycled, the entire duct is made of imported high-grade stainless steel plate, the bottom of the duct and the cone hopper interface connection, fan inlet and outlet directly connected with the duct, and then in the appropriate location The top of the studio will be the top of the expansion of access to the studio body, the formation of "O" closed vertical blowing dust blowing system, so that the air flow can flow smoothly, the maximum dust evenly dispersed.

Using a single high-power low-noise centrifugal fan, and using the frequency converter to adjust the wind speed according to the test requirements.



Centrifugal Fan Lab Test Chamber , Stainless Steel Sand Dust Test Machine For Electronic Products 0


Specifications :



Type XB-OTS-800P XB-OTS-1000P XB-OTS-1500P
Inner dimensions (mm) 800×800×800 1000×1000×1000 1000×1500×1000
outside dimensions (mm) 1200×1300×1900 1400×1500×2150 1450×2000×2300
Nominal line diameter of metal screen 50 μm , nominal spacing between lines are 75μm
Airflow velocity ≤2m/s
Dust concentration 2 ~ 4kg / m3
Test dust dry talcum powder, Portland cement and so on
Temperature range RT ~ 60 C
Circuit control system P.L.C control system
Heating system circulating air heating
The flow control of vacuum pump 60~ 600L/H
Ambient humidity ≤85%
Power requirements AC380 (±10 % )V/ 50Hz ( power cord length greater than 3m )
Installed capacity approx . 3KW





Structure:


1. LCD Touch Screen Programmable Sand and Dust IP Test Chamber Inner material: Stainless steel (SUS #304)
2. LCD Touch Screen Programmable Dust Proof Test Equipment Outer material: Powder painting steel plate
3. Dust Test Equipment use imported touch screen programmable controller, can control dust blowing
motor, dust vibration and test time.
4. With sealing good chamber door, has lock device and glass observation window.There is lamp and dust
brush to ensure easy observation of inner chamber.
5. With strong dust blowing device and vibrator to ensure informity of each blowing.
6. Circulating air supplying device: Frequency converter and high pressure motor to ensure the air volume
more precision.
7. Large diameter strong stainless steel air hose, covered with heating device, can heat and dry the test
chamber dust.
8. Anti-explosion handle, easy operation, strurdy and durable.
9. Imported high-precision electronic temperature humidity sensor and air speed sensor.
10. Test sample differential pressure test device, can set pumping rate freely according to sample inquiry.
11. There is a ψ50mm test hole on the left chamber and equipped with port lid and silica gel chock plug.
Through this hole can connect to outer test device.
12. There are casters with brake equipments and fixing foot pad to make the machine easy operation and
level adjustment.
13. With voltage current indicator, equipped with corresponding sample DC12V power, DC24V/20A, interval, continuous power supply adjustable. Dust concentration wind speed regulating function. May control test total time, blow the dust of time interval and blowing dust cycle and sample with the power source of the intermittent time.
14. Vacuum system: Equipped with pressure meter, air filtration, dust dehumidification system, regulating
triple pieces, connecting pipe (Vacuum pump should be prepare by customer)



Centrifugal Fan Lab Test Chamber , Stainless Steel Sand Dust Test Machine For Electronic Products 1
