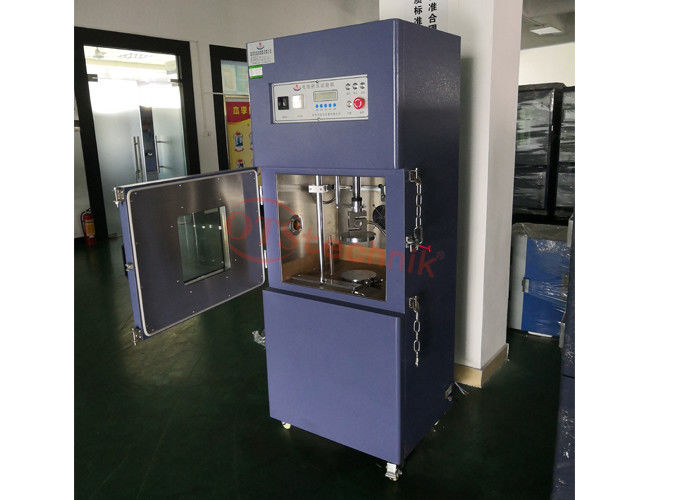

1kN ~20kN Cell Phone Battery Testing Machine / Battery Extrusion Needle Test Machine

Mobile Phone Lithium Batteries Crush Nail Penetration Tester

Overview:
The Battery Extrusion Needle Test Machine is suitable for simulating all kinds of batteries in the use, transportation, storage or disposal of household waste, the battery is subjected to squeeze. The test shall be carried out at an ambient temperature of 20 °C ± 5 °C. The battery with the thermocouple (the contact of the thermocouple is fixed on the large surface of the battery) shall be placed in a fume hood with an rust-free steel of 2-8 mm in diameter. The needle pierces the center of the largest surface of the battery at a speed of 10mm/s to 40mm/s, keeps it at any time and observes the test results.The battery is qualified as not to explode and not to catch fire.

Standards:GB31241-2014,GB/T8897.4-2008,YD/T2344.1-2011,GB/T21966-2008,MT/T1051-2007,YD 1268-2003,GB/T 19521.11-2005,YDB 032-2009,UL1642,UL 2054,IEC 62281,IEC 60086

1. Extrusion parameters:
   1. Transmission mode: hydraulic drive
   2. Battery extrusion head (plate): standard circular extrusion plate, easy to replace (size is 150mm in diameter)
   3. Extrusion: The extrusion continues until the actual pressure reaches 13kN ± 0.2kN, holding pressure for 1min. Once the pressure is reached, the equipment automatically releases pressure and completes the extrusion;
   4. Pressure range: 1 kN ~20kN (usually 13 kN)
   5. Pressure display accuracy: 0.1N, sensor resolution: 1/10,000;
   6. Unit Conversion: kg, N, lb
   7. Data sampling frequency: 80 times/second
   8. Test space: 520x450x460mm (L*W*H)

9. External size:700x800x1830mm(L*W*H)
9. Machine extrusion stroke: 300mm

10. Advantage:The rear side of the inner chamber is designed with an air outlet and a pressure relief device,with light in the chamber.

11. Control system: The test force and shape variable could be set by computer.

and the test data such as force value curve, shape variable, battery surface temperature can be displayed. The test data could generate the report.

12. Signal transmission mode: RS 232 serial port or USB 2.0 high-speed transmission serial port; Squeeze speed: 1~400mm/min (speed can be set), hold time can be set.

13. Extrusion direction: horizontally and vertically downward direction, the extrusion plate is pressed from top to bottom; extrusion degree: extrusion continues until the actual pressure reaches 13kN±0.2kN, holding pressure for 1min (holding time can be set), once it reaches The maximum pressure, the equipment automatically relieves pressure, completes the extrusion; or reaches the set extrusion shape variable pressure for 1min (the holding time can be set), then the device automatically relieves pressure and completes the extrusion; the maximum pressure range: 1 kN ~ 20kN ( Commonly used 13 kN)

14. Battery extrusion head: standard extrusion head, area 150mm² or 200mm²

• Needle section parameters:
  1. Φ3mm φ5mm φ8mm φ20mm ,with each one high-temperature resistant steel needle, the length is 100mm (the specification and length of the steel needle can be customized according to the specified requirements).

• The distance from the needle tip to the lower part: The plane of the battery is 200mm
  3. Clipping distance: 10mm
  4. Penetration speed:1~80mm/s(could be set by computer)
  5. Clamping battery distance: 200mm
  6. Test data display: computer test software shows force curve, value, battery surface temperature change, etc.
  7. Drive mode: hydraulic drive

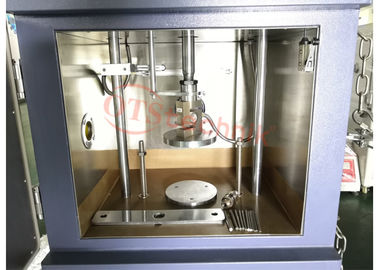

  8. Made of box-type equipment, explosion-proof, fire-proof, anti-corrosion, easy to clean.
  9. Explosion-proof inner box material: stainless steel and affixed with iron fluorocarbon cloth at 1/3 of the box, high temperature resistance, corrosion resistance, insulation and easy cleaning.
  10.Visual window: 300mm*300mm,20mm thick tempered explosion-proof glass, a live front is installed in the glass ,Dynamic stainless steel wire explosion-proof mesh, increased safety, and easy to clean.
  11. Use the power: 220V, 50HZ,1Phase
  12. Overall weight: about 300kg

3) Factory configuration:

1. 1 Squeeze acupuncture host

2. 1 extrusion test fixtures + 1 set of needle-punched steel needles (φ3mm φ5mm φ8mm φ20mm)

3. 1 professional test computer + 1 test software

4.1.English user manual
