| Model Numbe: | XB-OTS-408M | Product Name: | Electrical Altitude Simulation Vacuum Chamber With Temperature Humidity Testing |
|---|---|---|---|
| Temperature Control: | -70°C ~ +150 °C | Humidity Control: | 20%~98% RH |
| Power Supply: | 220V / 380V, 50Hz / 60Hz Customized Acceptable | Refrigerant: | Environmental Friendly R404A/R23 |
| Application: | Electronic,Auto,plastic,Instrument | Pressure Range: | 101kpa ~1kpa |
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Place Of Origin: | China |
| High Light: | altitude simulation chamber,high altitude chamber |
||

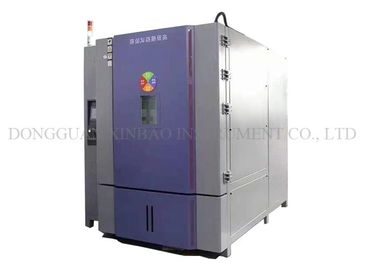

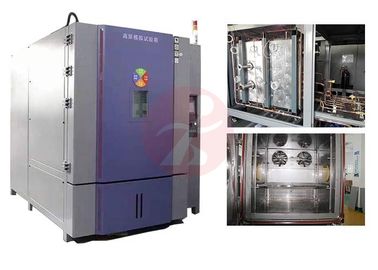

Electrical Altitude Simulation Vacuum Chamber with temperature humidity testing
Introduction:
Electrical Altitude Simulation Vacuum Chamber with temperature humidity testing is used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.
Features
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
Technical parameters:
| Model | XB-OTS-408M | XB-OTS-504M | XB-OTS-1000M | XB-OTS-2160M | |
| Inner Size (D*W*H)mm | 800*850*600 | 800*700*900 | 1000*1000*1000 | 1200*1400*1200 | |
| Capacity(KW) | 11 | 15 | 16 | 18 | |
| Chamber Volume(L) | 408 | 504 | 1000 | 2160 | |
| Specifications | Temp range | -70℃~+150℃ | -70℃~+150℃ | -70℃~+150℃ | -70℃~+150℃ |
| Temp fluctuation | ±0.5% | ||||
| Temp deviation | ≥100℃, ±3.0℃(at 101kPa, ATM no load) | ||||
| <100℃, ±2.0℃(at 101kPa, ATM no load) | |||||
| Cooling rate | 0.7℃~1.0℃/min (Average) | ||||
| Pressure range | 101kPa ~1kPa | ||||
| Pressure accuracy | ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa) | ||||
| Depressurization rate | 101kPa ~1kPa≤30mins (Room temp) | ||||
| Pressure recovery rate | 10kPa/Min(adjustable) | ||||
Standard configuration
Two sample holders; an observation window; φ25 or φ50 cable hole.
Optional parts
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Structure
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
