Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-150 | Product Name: | Burn In Oven Temperature Thermal Cycling Test For Semiconductor Product |
|---|---|---|---|
| Temperature Control: | -70°C ~ +150 °C | Humidity Control: | 10%~98% RH |
| Refrigerant: | Environmental Friendly R404A/R23 | Controller: | OTS Designed Controller With LCD |
| Color: | White | Usage: | Universal Testing Machine,environmental Test Chamber |
| Power: | Electronic | Place Of Origin: | Original France Tecumseh |
| High Light: | environmental growth chambers,benchtop environmental chamber |
||

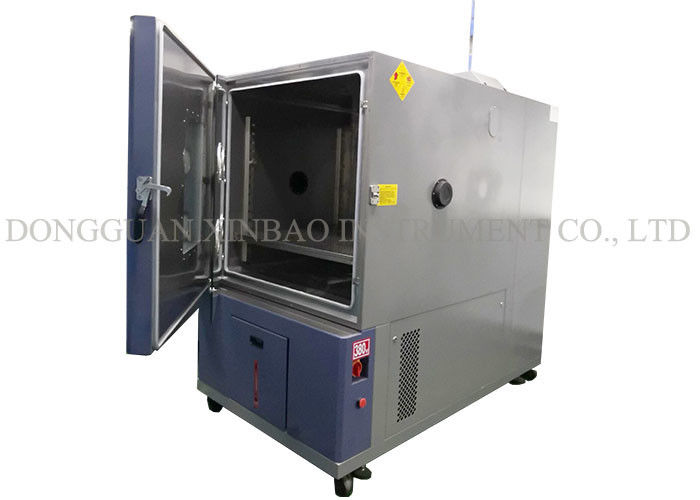

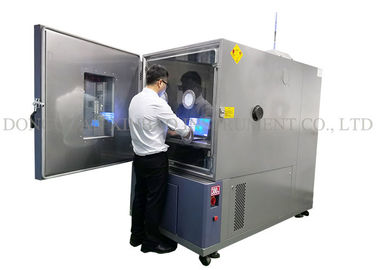

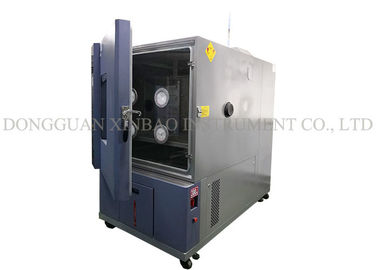

Burn in Oven temperature thermal cycling test for semiconductor product
Introduction:
Burn in Oven temperature thermal cycling test for semiconductor product is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, semiconductor product ,foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
The main technical parameters
| Model | XB-OTS-150 | |||||||
| Inner chamber size W×H×D | 500*600*500mm | |||||||
| Exterior chamber size W×H×D | 1000*1460*1040mm | |||||||
| Testing temp. range | -70℃~150℃ (if this is not your requirement, please tell us) | |||||||
| Testing humidity range | No humdity ( if need, pls tell us) | |||||||
| Temp. humi.fluctuation | ±0.2℃ | |||||||
| Temp. humi.uniformity | ±1.5℃ | |||||||
| Temp. humi.resolution | 0.01℃ | |||||||
| Material | SUS#304 Stainless steel | |||||||
| Interior chamber material | SUS#304 Stainless steel | |||||||
| Insulation material | PU fiberglass wool | |||||||
| System | Cooling fan | |||||||
| Heating system | SUS#Stainless steel high-speed heater | |||||||
| Humidification system | Surface evaporation system | |||||||
| Refrigeration system | Imported Tecumseh compressor+Fin type evaporator+air(water)cooling system | |||||||
| Controlling system | Digital electronic indicator+SSR+PID | |||||||
| Safety protection device | Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection,overload indicator lamp |
|||||||
| Power supply | AC 1Y 220V;3Y 380V 60/50Hz | |||||||
Features
A. Reliability testing based on current test standards in the temperature range of -70 °C to 180 °C and 10% to 98% R.H.
B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -70 ºC and 180 ºC.
C. Forced ventilation loops design, balance temperature & humidity control system .
D. We can provide custom-made machine and optional accessories satisfied your special requirements.
E. Improved programming and data collection via computer
F. Energy-saving operation, the XB-OTS-150 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of OTS environmental test chambers the most energy efficient ever.
WE have other related models could be choose too , also accept the customized as per your requirements
| ModeNumber | XB-OTS-80 | XB-OTS-150 | XB-OTS-225 | XB-OTS-408 | XB-OTS-800 | XB-OTS-1000 |
| Inner size(W*H*D)CM | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 100*100*800 | 100*100*100 |
| External size (W*H*D)CM | 90*136*94 | 100*146*104 | 100*161*117 | 110*171*137 | 150*186*137 | 150*186*157 |
| Temperature range | -70°C~+150°C(180°C)(A:-20°C B:-40°C C:-60°C D:-70°C ) | |||||
| Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H) | |||||
| Temp humidity | ±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition. | |||||
| analytic accuracy/uniformity | ||||||
| Temperature humidity | ±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H. | |||||
| control accuracy/fluctuation | ||||||
| Heat/cooling time | About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition ) | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber and | |||||
| Carton Advanced cold plate nano paint for outer. | ||||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system | Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C) | |||||
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, | |||||
| super humidity over-temperature protection switch, fuse, failure warning system | ||||||
| Parts | Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze | |||||
| Controller | TEMI1500 TH-900C South Korea | |||||
| Compressor | Original France“Tecumseh”brand | |||||
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | |||||
Standard Reference
| GB11158 | GB10589-89 |
| GB10592-89 | GB/T10586-89 |
| GB/T2423.1-2001 | GB/T2423.2-2001 |
| GB/T2423.3-93 | GB/T2423.4-93 |
| GB/T2423.22-2001 | IEC60068-2-1.1990 |
| MIL-STD-810F-507.4 | MIL-STD883C 1004.2 |
| JIS C60068-2-3-1987 | IEC68-2-03 |
| ASTM D1735 | JESD22-A101-B-2004 |
| JESD22-A103-C-2004 | JESD22-A119-2004 |
FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
14 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
