Product Details:
Payment & Shipping Terms:
|
Product Name: | -37℃ To 85℃ Walk In Stability Test Chamber For Temp / Humidity Cycling Test | Temperature Range: | -37℃~85℃ |
---|---|---|---|
Humidity Range: | 20%~98% | Heat Up & Cool Down Time: | About 3℃/min From Room Ambient To 85℃, About Average 1℃/min From Room Ambient To -37℃. |
Refrigeration & Heating System: | P.I.D Control Heating & Cooling Systems Separated | Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber |
Viewing Window: | The Transparent Electro Thermal Hollow Toughened Glass | Material: | SUS#304 Stainless Steel For Internal Chamber; Galvanized Steel With Ivory White Powder Coated Finish For External Chamber |
High Light: | walk in stability chamber,walk in climatic chamber |

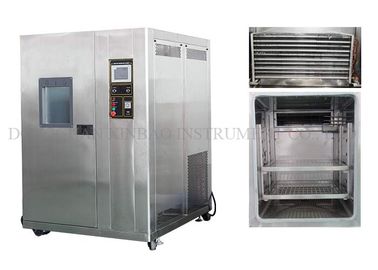

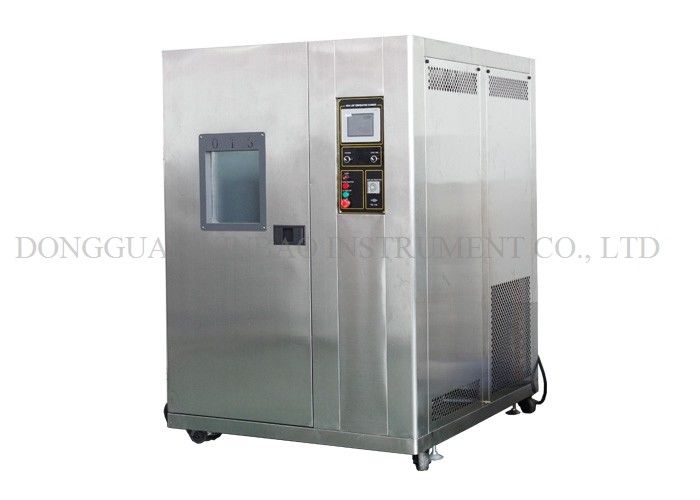

Humidity Cycling Walk In Test Chamber Imported High Efficiency Compressor
Introduction:
-37℃ to 85℃ walk in stability test chamber for temp / humidity cycling test give the maximum flexibility in both chamber size and performance for your most demanding temperature/humidity testing requirements. It allows manufacturer to simulate how their products will perform in climate conditions
Technical parameters:
Model | XB-OTS-400E |
Volume | 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements |
Temperature range | -37℃~85℃ |
Humidity range | 20%~98%R.H. |
Accuracy/uniformity | ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
Accuracy/volatility | ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
Cooling time | 5.0 °C /minute |
Inside material | SUS#304 Stainless Steel |
Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
Cooling system | Water-cooled / two-stage compressor |
Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
Accessories | recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
Controller | German Siemens PLC or TH-900C Korea or TEMI |
Compressor | France's Tecumseh Brand or Germany |
Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Refrigeration & Heating System
1) Original imported high efficiency compressor
(2) Air cooling condenser
(3) Fin-tube heater
(4) Original imported solenoid valves
(5) Inner spiral K-type refrigerant copper tube
(6) U-Type finned electro thermal tube
(7) P.I.D control heating & cooling systems separated
(8) Double stage refrigerating system
Applications:
For all types of electronic products quality inspection , electric appliance, and communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries products.
Features:
1. Realize temperature constant value control and program control;
2. The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3. With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.
4. Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5. Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6. Customize size/customize indicators/customize various optional features
Related Testing Standard:
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for -37℃ to 85℃ walk in stability test chamber for temp / humidity cycling test
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
After-Sales Service:
A year's quality guarantee period starting from the date of acceptance of the equipment, in guarantee period, completely free maintenance (except natural disaster, abnormal power, people improper use and maintain causing the damage), in the condition of the buyer abiding by the rules of custody, use and installation, because of the test chamber manufacturing quality problem can't work normally, after the supplier be notified, in accordance with the service commitment of time will help the buyer solve the problem by email, if the buyer need that supplier send maintenance personnel to solve it,the buyer only need pay travel charge.
Equipment problems after warranty period, the supplier promise to give solution on time, discretion charge maintenance costs and the cost of raw materials.
