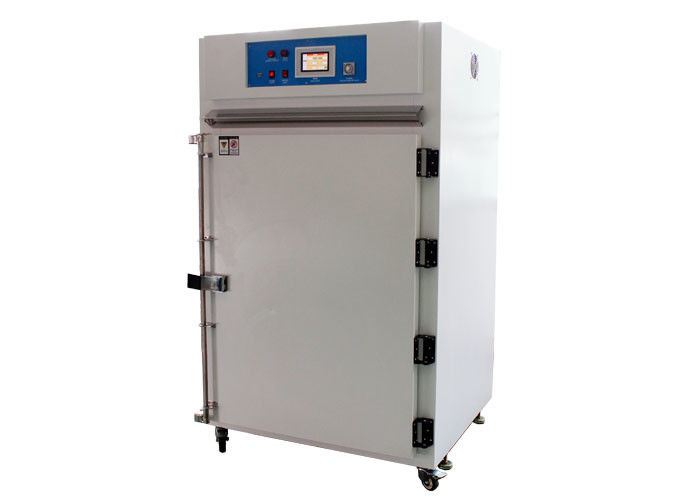

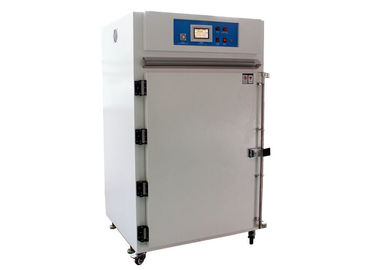

±0.5℃ Accuracy PID Controlled Laboratory High Temperature Hot Air Oven

±0.5℃ Accuracy PID Controlled Laboratory High Temperature Hot Air Oven
±0.5℃ Accuracy PID Controlled Laboratory High Temperature Hot Air Oven ±0.5℃ Accuracy PID Controlled Laboratory High Temperature Hot Air Oven

Large Image :  ±0.5℃ Accuracy PID Controlled Laboratory High Temperature Hot Air Oven

Product Details:
Place of Origin: Dongguan,China
Brand Name: OTS
Certification: CE/ISO
Model Number: XB-OTS-640L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export plywood case suitable for different and long distance transportation
Delivery Time: 20 days after payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets/Month
Detailed Product Description
Material: SS304 Stainless Steel Size: 80*80*100mm
Temperture Range: RT+10℃~300℃ Control Method: PID ,PID Automatically Adjust The Output
Customized Size: Acceptable Power: 1 Phase 220V 50Hz
Cable Port: External Power Temp Control Fluctuation: ± 1.5℃
Accuracy: ±0.5℃
High Light:

hot air circulation drying oven

,

laboratory drying oven

±0.5℃ Accuracy PID Controlled Laboratory High Temperature Hot Air Oven



Specification:



  Product name High Temperature oven Model Number XB-OTS-150L
  Power 1 phase 220V 50Hz Cable Port External Power
  Interior size(W*H*L) 50*60*50cm(W*H*D)

Exterior size

(W*H*L)

69*110*64cm(W*H*D)
  Customized size Acceptable Control method PID ,PID automatically adjust the output


Advantages:



1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted.



2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.



3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.



4.Timing device for LED Digital constant timing, providing complete use Conditional design.



5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.



6.Machine continuous running time is above three month



7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down.


  Temp control fluctuation ± 1.5℃ Temperature range



RT+10℃~300℃




  Accuracy ±0.5℃ Temperature resolution 0.1
  Temperature uniformity ±2℃ Power



4.8KW






Key set of

data input

Resolution 0.1 ℃

ntegration time(IT):

0~3600s

Derivative time(DT):

0~900s

Built-in timer function



Protection device

Motor overload protection
Buzzer
Fault indicator
No fuse protection switch






Heating up time

(NO-load)

RT~160℃ about 28min



  Temp controller The microcomputer automatically calculus controller
  Chamber materials

1.Inner chamber materials:SUS stainless steel plate

2.External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating.

3.Insulation material: aluminum silicate glass wool

4.The clapboard Material: Stainless Steel

5.Stainless steel electric heater Material: fin heat pipe type

6.Time control: 0 ~ 999H/M/S adjustable.

7.The rmometry body: T thermocouple

  Air supply method

Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door.



  Use of the environment

Allowable temperature range of 0 ~ 35 ℃





±0.5℃ Accuracy PID Controlled Laboratory High Temperature Hot Air Oven 0
