Payment & Shipping Terms:
|Temp Range:||1000℃||Inner Working Size:||200X300X500mm H*W*D|
|Outer Machine Size:||590x600x930mm H*W*D||Maximum Temperature:||Customized|
|Controller Size:||150*450*340mm H*W*D||Power Supply:||12KW|
|Gross Weight KG:||Around 200||Warranty:||12+2 Months|

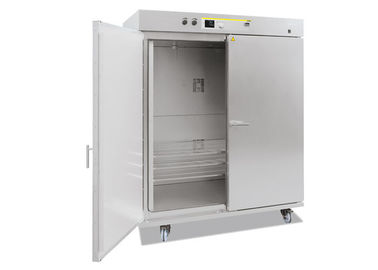

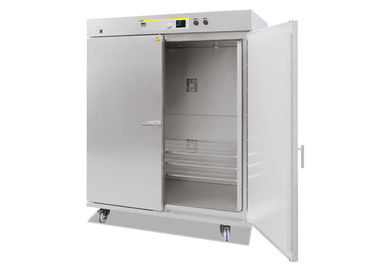

dryer oven machine,
laboratory drying oven
The products are widely applied in the chemical analysis and physical determination for labs in industrial and mining enterprises, scientific research institutes, etc; sintering stoneware, porcelain and ceramics; high-temperature heat treatment for metal annealing, quenching and tempering.
|inner working size||200X300X500mm H*W*D|
|Outer machine size||590x600x930mm H*W*D|
|Maximum temperature||1000 degree C|
|controller size||150*450*340mm H*W*D|
380 three-phase 50Hz
|Gross weight KG||Around 200|
|Under the no-load conditions of the performance paremeter , environmental temperature 20C ,
environmental humidity 50% RH , RT is for environmental temperature
1.Special door design, easy to operate to avoid the leakage of high temperature.
2.Micropocessore & PID controller, Accurate Controlled Temperature, safe and reliable
3. Anti-corrosion chamber with long life (Firebricks Chamber or Ceramic fiber Chamber)
4. Good door seal to minimum the loss of heat, increase the uniformity of temperature in chamber.
5.The console and furnace are for separate operation to avoid the quality and precision problem for the console caused by high temperature,and it is also convenient for mainting
6.The tank body is made by quality steel plate , and the furnace hall is for the rectangular overall structure taht sinetering by standard silicon carbide or high aluminum clustering light refractory
materials , and the heating elements are for high quality nickel chrome alloy silk distributing around (below 1200C) , or silicon carbide rod (1300C) silicon phase rod (1600C) distributing two sides or up and down to make sure the temperature uniformity of the furance hall
1. Heat power will shut down when the door open.
2. Have security of over-temperature, over-current and over pressure to avoid the incident.
3 Use ceramic fiber as thermal Insulation Materials, the temperature on surface
1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer of Wholesale Environmental High Temperature Chamber Price Temperature Test Machine. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. Do you have a branch company or service office in my country?
We have offices in the belowing:
The US Office: XIN BAO INSTRUMENT (US) LLP
Address: 1201 N Park Ave Tucson AZ 85719
Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD
Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.
Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd
Tel: (+65) 96857857
Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349
Italy Dealer :AMSE SRL
Address: Strada della Cebrosa 86, 10156 Torino Italy
Suzhou Branch: XIN BAO INSTRUMENT SUZHOU BRANCH
Tel:0512-67078249 Fax: 0512-67078749
Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province
Taiwan : TAIWAN XIN BAO INSTRUMENT CO.,LTD
Address: No. 551-1, 4, Central Road, Taichung City, Taiwan
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site
