|Model:||XB-OTS-80||Product Name:||3 Zones Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber|

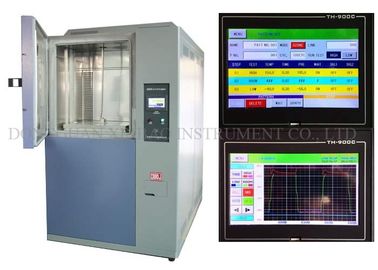

|Usage:||Thermal Shock Test Chamber||Controller:||Programmable LCD Touch Screen|
|Compressor:||Original Germany Brand||Shock Temperature ::||-40°C~150°C|
|Cooling Type:||Air Cooling Or Water Cooling||Test Method:||Air To Air|
temperature cycling chamber,
temp humidity chamber
3 Zones Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber
Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber used to test the material structure or composite material in an instant by the extremely high temperatures and very low temperature continuous environment which can endure the degree of order in the shortest possible time to test its thermal expansion and contraction caused by chemical changes physical harm.
The applicable the object material, including metals, plastics, rubber, electronic, etc., can be used as the basis of its product improvement of reference.
|Internal size WxHxD(cm)||36×40×35||40×50×40||50×60×50||60×75×50||80×85×60|
|External size WxHxD(cm)||148x175x160||150X175X165||155x185X165||165x200X175||185x210x185|
|Shock Temperature ragne||-65°C~150°C|
|Heating up time||RT~200°C about 35min|
|Cooling down time||RT~-70°C about 90min|
|Temp recover time/change time||≤ 5min|
|Temp control accuracy||±0.5°C / ±2.0°C|
This is so called Fast Shipping Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber.
Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. When it comes to low temperature test, cold chamber door open, and low-temperature chamber working together with test chamber.
When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber.
Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1second, and the temperature can be quickly stabilized. During the whole test, test sample is no need to be moved, and without any human intervention.
Fast Shipping Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber have been designed to operate in accordance with reliability programs, quality control, commercial test programs and medical tests. It is used to test the capability of material structure or composite material to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for produce improvement.
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
GB11158 GB10589-89 GB10592-89
GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001
GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93
ASTM D1735 EIA - 364-59 IEC60068-2-1.1990
IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
1. Are you a Manufacturer ? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer of Climatic Test Chamber,Fast Shipping Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber .Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Please feel FREE to contact us if you have any needs.
