|Temp Control Fluctuation:||± 1.5℃||Accuracy:||±0.5℃|
|Temperature Resolution:||0.1||Temperature Uniformity:||±2℃|
|Power:||4.8KW||Heating Up Time:||RT～160℃ About 28min|
|Temp Controller:||The Microcomputer Automatically Calculus Controller||Use Of The Environment:||Allowable Temperature Range Of 0 ~ 35 ℃|
dryer oven machine,
laboratory drying oven
72L Volume Electric Circulation industrial Drying Oven
|Product name||High Temperature oven||Model Number||XB-OTS-64L|
|Power||1 phase 220V 50Hz||Cable Port||External Power|
|Customized size||Acceptable||Control method||PID ,PID automatically adjust the output|
1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted.
2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.
3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.
4.Timing device for LED Digital constant timing, providing complete use Conditional design.
5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.
6.Machine continuous running time is above three month
7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down.
|Temp control fluctuation||± 1.5℃||Temperature range||
Key set of
Resolution 0.1 ℃
Built-in timer function
Motor overload protection
Heating up time
RT～160℃ about 28min
|Temp controller||The microcomputer automatically calculus controller|
1．Inner chamber materials:SUS stainless steel plate
2．External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating.
3．Insulation material: aluminum silicate glass wool
4．The clapboard Material: Stainless Steel
5．Stainless steel electric heater Material: fin heat pipe type
6．Time control: 0 ~ 999H/M/S adjustable.
7．The rmometry body: T thermocouple
|Air supply method||
Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not cause direct damage of high temperature ,when open the door.
|Use of the environment||
Allowable temperature range of 0 ~ 35 ℃

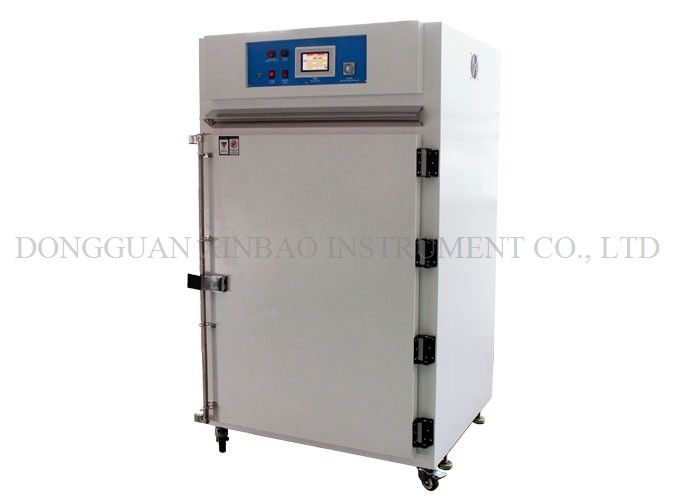

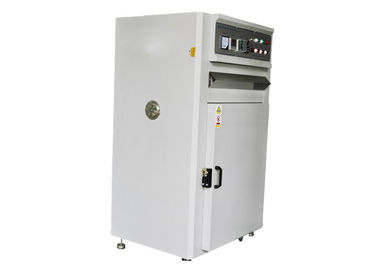

Product’s picture for your reference as following:
