|Product Name:||High Performance PLC Salt Mist Chamber Salt Fog Chamber For Anodized Aluminium Testing||Volume Of Test Box:||1000L|
|Inside Dimension:||200*100*50cm(L*W*H)||Inside Temperature:||Brine Test Method(NSS ACSS)35°C±1°C/Corrosion Resistance Test Method (CASS)50°C±1°C|
|Spray Method:||Continuous Spraying||Body Material:||SUS#304 Stainless Steel Plate|
|Volume Of Pressure Bucket:||40L||Warranty:||1 Year|
salt spray test equipment,
salt spray cabinet

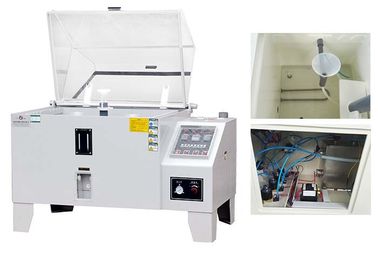

Anodized Aluminium Testing Salt Spray Booth , Salt Spray Equipment Continuous Spraying
|Inner size (cm)||60x45x40||90x60x50||120x80x50||160x100x50||200x100x50|
|Inside temp||Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method.|
|Brine temp||35°C±1°C 50°C±1°C|
|Test chamber volume||108L||270L||480L||800L||1440L|
|Brine chamber volume||15L||25L||40L||40L||40L|
|Compressed air pressure||1.00±0.01kgf/cm2|
|Spray volume||1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)|
|Test room relative humidity||85%RH or more|
|PH||6.5~7.2 or 3.0~3.2|
|Spray method||Programmable spray (including the continuous spray interrupted spray)|
1. Temperature of machines are controlled by PID which is highly precision and stable, so it ensures the fluctuation of humidity and temperature, as well as test operation.
2. The temperature control is adopted by P.I.D＋S.S.R so that to improve the stability and service life of the screen and accessories. The touch screen is able to display data and settings at the same time.
3. The automotive water tap is with a filter to prevent blockage of pipes and extend the machine’s service life.
4. In the test chamber , there is a automotive overflow protection device instead of manual work, which improves production efficiency.
5. The heat system is equipped with titanium alloy device. It is corrosion- resistance and rustless, and it also has a repair hole for convenience.
6. The oil water separator is from a famous Taiwan brand ---SNS and with 2 cups. So it can improve the accuracy of tests.
7. The pressure bucket, also called saturated air barrel, is made with SUS304 stainless board. It is to compress the air into humidity and oil filter as a core part of this machine.
1.The over temperature of whole machine.
2.Automatically cut the power off when the water level of test chamber or pressure bucket is below the standard.
3. The entire machine is set with a timer and alert of overflow, electronic leakage, light circuit.
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license
