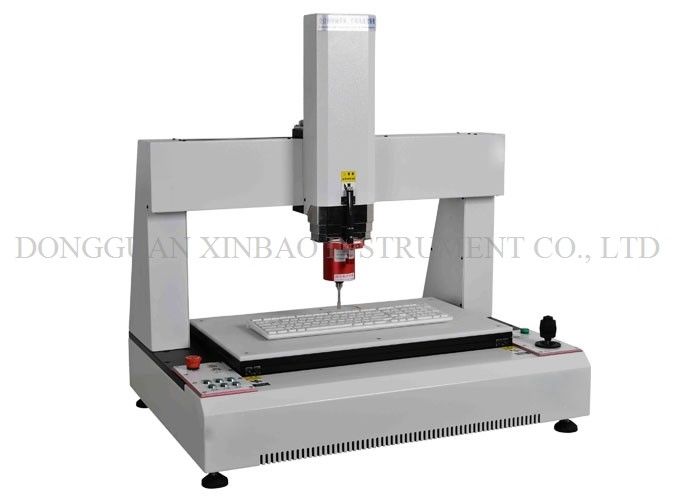

Automatic Push Button Load Stroke Curve Testing Machine XYZ Three Axis Design

Automatic Push Button Load Stroke Curve Testing Machine XYZ Three Axis Design
Automatic Push Button Load Stroke Curve Testing Machine XYZ Three Axis Design
video play

Large Image :  Automatic Push Button Load Stroke Curve Testing Machine XYZ Three Axis Design

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: ots
Certification: CE
Model Number: xb-ots-2800s
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets (Min. Order)
Price: Negotiable
Packaging Details: standard export wooden box is used for packing the steel ball impact resistance tester for mobile phone.
Delivery Time: within 15 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Set/Sets per Month Dropping Impact Tester
Detailed Product Description
Power: Electronic Usage: Three Axis Key Pressing Load Test Instrument
Model: Three Axis Key Pressing Load Test Instrument X-axis: Movement: 300mm
Y-axis: Movement: 300mm Z-axis: Movement: 300mm
X/Y-axis Speed: 500mm/min Z-axis Speed: 200mm/min
Min. Trimming Distance: 0.01mm Voltage: AC 220V
High Light:

mobile phone drop testing machine

,

impact test equipment

Professional Computer XYZ Three Axis Automatic Push-Button Load Stroke Curve Testing Machine

Specialties:
1. The tester is moved by X, Y, Z axes, X,Y are to move the testing platform, so that can realize the multi-points compression test for the buttons force test and the electronic products compression test; Z axis is connected to the transducer to apply the test force ,collect the test force and control the compression time.
2. The system is controlled by computer professional software, can set the test force, test time, test cycles, and test speed, and can collect the test force ,test time, test speed to generate the test graph.
3. X,Y,Z axes are driven by servo motor from Japanese Panasonic to drive; transmission by precise ballscrew which can achieve the low noise and long durability.
4. The tester is equipped with a controlled box, the operator can also use the box for the tester setting.
5. The tester is table top type, a special table as the accessory.
6. Chinese or English interface can be optional . The unit (N,Lb,gf,kgf) can be switched freely .
7. The testing method can be set, saved and called for use from the saving record . The data and curve can be printed directly.
8. The life damping curve can be created, the test report can be converted to Excel and PDF file format.

 Automatic Push Button Load Stroke Curve Testing Machine XYZ Three Axis Design 0
Automatic Push Button Load Stroke Curve Testing Machine XYZ Three Axis Design 1

Specification:

ModelXB-OTS-2800S
Driving method of Z axisServo motor of Japanese Panasonic
Transducer50N(5kgf)1000N(100kgf)
Range of driving (up and down)0~150mm
Test range of load0~50N(5kgf)or 0~1000N(100kgf)
Resolution of load0.01N
Accuracy of load±0.5%F.S
Test range of displacement0~150mm
Resolution of displacement0.001mm
Accuracy of displacement±0.03mm
Range of test speed0.1~150mm/min
Driving method of X-Y axisServo motor from Panasonic
Control wayX:(right and left) Y:(forward and backward)
Driving rangeX:0~300mm Y:0~300mm
Resolution of displacement0.002mm
Accuracy of displacement±0.05mm
Range of moving speed5~200mm/sec
Max size of specimenW300xD300mm
WeightAbout 250kg
Size of machineW765xD895mmxH1250mm
Size with tableW1400xD900xH1900mm
