CASS Testing Salt Spray Test Chamber New Type Continuous / Periodic Spraying Method

CASS Testing Salt Spray Test Chamber New Type Continuous / Periodic Spraying Method
CASS Testing Salt Spray Test Chamber New Type Continuous / Periodic Spraying Method
video play

Large Image :  CASS Testing Salt Spray Test Chamber New Type Continuous / Periodic Spraying Method

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE; ISO
Model Number: XB-OTS-90
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped
Delivery Time: 20 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 350 sets per month
Detailed Product Description
Product Name: New Type Anti-corrosion Salt Spray Testing Equipment For CASS Testing Inside Temperature: Brine Test Method(NSS ACSS)35°C±1°C/Corrosion Resistance Test Method (CASS)50°C±1°C
Volume Of Pressure Bucket: 25L Volume Of Test Box: 270L
Spray Method: Continuous / Periodic Spraying Warranty: 1 Year
Inside Dimension: 90*60*50cm Body Material: SUS#304 Stainless Steel Plate
High Light:

salt spray test equipment

,

salt spray cabinet



CASS Testing Salt Spray Test Chamber New Type Continuous / Periodic Spraying Method





Specification:



Model XB-OTS-60 XB-OTS-90 XB-OTS-120 XB-OTS-160 XB-OTS-200
Inner size (cm) 60x45x40 90x60x50 120x80x50 160x100x50 200x100x50
External size(cm) 107x60x118 141x88x128 190x110x140 230x120x140 270x150x150
Inside temp Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method.
(CASS)50°C±1°C
Brine temp 35°C±1°C 50°C±1°C
Test chamber volume 108L 270L 480L 800L 1440L
Brine chamber volume 15L 25L 40L 40L 40L
Compressed air pressure 1.00±0.01kgf/cm2
Spray volume 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)
Test room relative humidity 85%RH or more
PH 6.5~7.2 or 3.0~3.2
Spray method Programmable spray (including the continuous spray interrupted spray)
Features

1. Temperature of machines are controlled by PID which is highly precision and stable, so it ensures the fluctuation of humidity and temperature, as well as test operation.

2. The temperature control is adopted by P.I.D+S.S.R so that to improve the stability and service life of the screen and accessories. The touch screen is able to display data and settings at the same time.

3. The automotive water tap is with a filter to prevent blockage of pipes and extend the machine’s service life.

4. In the test chamber , there is a automotive overflow protection device instead of manual work, which improves production efficiency.

5. The heat system is equipped with titanium alloy device. It is corrosion- resistance and rustless, and it also has a repair hole for convenience.

6. The oil water separator is from a famous Taiwan brand ---SNS and with 2 cups. So it can improve the accuracy of tests.

7. The pressure bucket, also called saturated air barrel, is made with SUS304 stainless board. It is to compress the air into humidity and oil filter as a core part of this machine.

Corresponding Standard

GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735

IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C

EIA - 364-59 ASTM B117

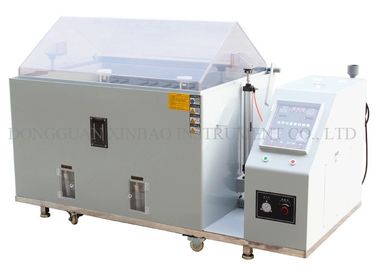

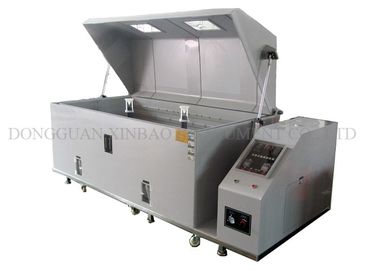

Product Picture:



CASS Testing Salt Spray Test Chamber New Type Continuous / Periodic Spraying Method 0



Package and shipment:



(1). Strong standard wood case, inner plastic films wrapped for New Type Anti-corrosion Salt Spray Testing Equipment for CASS Testing.

(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.





Company Introduction:



Dongguan Xinbao Instrument Co., Ltd, with owner brand of OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards:ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, Aviation, etc.
