|Product Name:||CE Certified Programmable Fast Temperature Change Thermal Cycle Test Chamber||Power:||220V / 380V, 50Hz / 60Hz|
|Usage:||Universal Testing Machine||Body Material:||SUS#304 Stainless Steel Plate|
|Controller:||Programmable LCD Touch Screen Casters||Temperature Range:||Temp Range From -70℃ To 150℃|
|Heating,Cooling Rate:||5.0 C / Min ,1.2 C / Min||Inner Chamber Size:||400*500*400mm|
benchtop thermal chamber,
thermal cycling chamber
CE Temperature Humidity Test Chamber Thermal Cycling Chamber 0.01℃ Indication Resolution

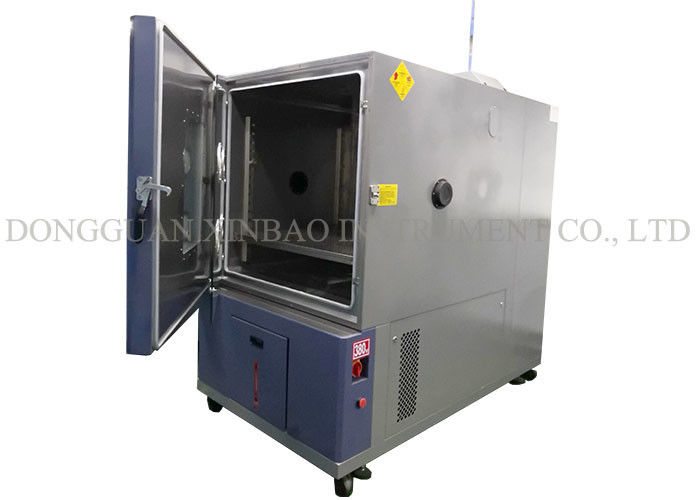

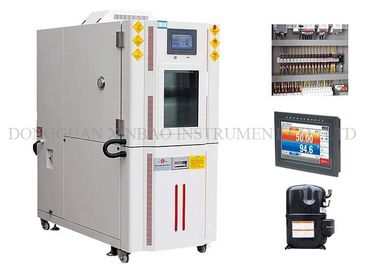

CE Certified Programmable Fast Temperature Change Thermal Cycle Test Chamber can test material heat, cold, dry resistance. Suitable for electronics, electrical appliances, Communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
|Product name||CE Certified Programmable Fast Temperature Change Thermal Cycle Test Chamber||Model Number||XB-OTS-80|
|Power||1∮ AC220V±10% 50Hz||Weight||180kg|
|Customized size||acceptable||Cooling type||Air cold|
|Temperature range||-70℃ ～150℃||Humidity range||Without|
|Temp control fluctuation||≤±0.5℃||Indication resolution||0.01℃|
|Temp. Uniformity||≤±2℃ (Put 9 sensor into inner chamber with 9 different location to get uniformity )|
|Heat up&Cool down time||≤5℃/min for heating; ≤ 1.2℃/min for cooling;|
SUS#304 stainless steel for Inner chamber with thickness 1.5mm
Steel plate for external chamber with thickness 1.5mm
|Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm|
Hinged door, single door open in the central cabinet ( the front of the chamber)Heat distribution on the door (automatic adjustment) anti-frost, anti-condensation insulating glass observation window
Door electric equipment (automatic adjustment) anti-frost, anti-condensation device
Preparation inside the door lights (LED longevity and efficient light source)
|Features||1.Has the USB download function, with RS232 interface, the curve of the software, do not need recorder
2.With vacuum glass observation window, direct observation of the function more effectively
3.The refrigerant servo control valve flow calculation. Save electricity 30%, dormancy in flow time, energy savingmore than 50%
4.Preventing electromagnetic interference by SGS certification controller;At least 32 digital soft path matching with The Times development and software upgrade function
5.Defrost cycle (800 cycle defrost time, defrosting guarantee within 2 hours each time, integration test reach 25% of the energy saving province electricity)
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C EIA - 364-59
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license
Customer Support Services:
Ø Training (Training customer employees)
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
OTS was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
