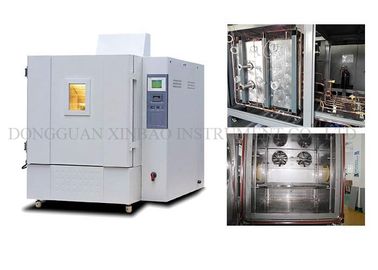

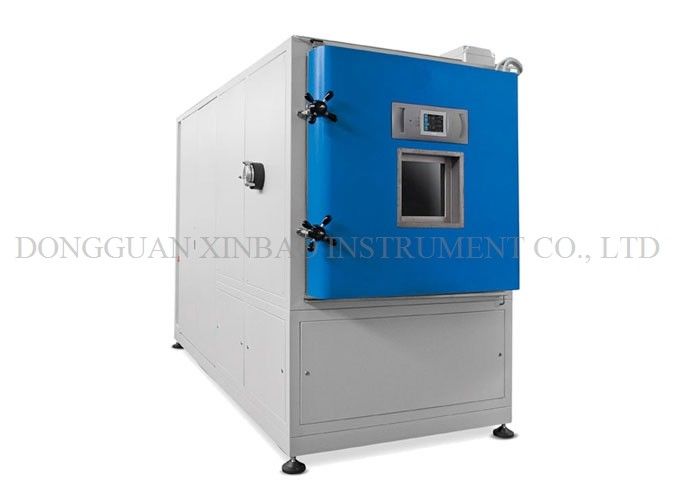

Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts

Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts
Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts
video play

Large Image :  Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts

Product Details:
Place of Origin: China
Brand Name: OTS
Certification: CE Certification
Model Number: XB-OTS-1000
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts
Delivery Time: 45 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Model Numbe: XB-OTS-1000 Product Name: Climatic Temperature And Low Pressure Altitude Test Chambers For Aircraft Parts
Temperature Control: -40°C ~ +150 °C Humidity Control: 20%~98% RH
Refrigerant: Environmental Friendly R404A/R23 Controller: OTS Designed Controller With LCD
Temp Fluctuation: ±0.5% Pressure Range: 101kpa ~1kpa
Cooling Rate: 0.7c~1.0c/Min (Average)
High Light:

climate control chamber

,

walk in environmental chamber

 Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts



Introduction:



Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts is used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.

Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts 0

Technical parameters:



Model XB-OTS-408M XB-OTS-504M XB-OTS-1000M XB-OTS-2160M
Inner Size (D*W*H)mm 800*850*600 800*700*900 1000*1000*1000 1200*1400*1200
Capacity(KW) 11 15 16 18
Chamber Volume(L) 408 504 1000 2160
Specifications Temp range -70℃~+150℃ -70℃~+150℃ -70℃~+150℃ -70℃~+150℃
Temp fluctuation ±0.5%
Temp deviation ≥100℃, ±3.0℃(at 101kPa, ATM no load)
<100℃, ±2.0℃(at 101kPa, ATM no load)
Cooling rate 0.7℃~1.0℃/min (Average)
Pressure range 101kPa ~1kPa
Pressure accuracy ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa)
Depressurization rate 101kPa ~1kPa≤30mins (Room temp)
Pressure recovery rate 10kPa/Min(adjustable)



Altitude chamber working principle



Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts 1



Temperature and humidity range chart

Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts 2

Temperature and pressure range chart

Climatic Temperature and low pressure altitude Test Chambers for Aircraft Parts 3

Standard configuration


Two sample holders; an observation window; φ25 or φ50 cable hole.

Optional parts
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.

Structure


Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.


Standards Implemented and Met


B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode





Features


1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application





Please feel FREE to contact us if you have any needs.
