Payment & Shipping Terms:
|Model Numbe:||XB-OTS-80||Product Name:||Desktop Enviromental Climate Humidity Chamber , Thermal Temperature Test Chamber|
|Temperature Control:||-40°C ~ +150 °C||Humidity Control:||10%~98% RH|
|Refrigerant:||Environmental Friendly R404A/R23||Controller:||OTS Designed Controller With LCD|
|Usage:||Universal Testing Machine,environmental Test Chambers||Power:||Electronic|
|Place Of Origin:||Original France Tecumseh|
high low temperature chamber,
stability test chamber

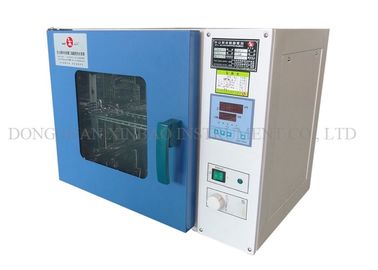

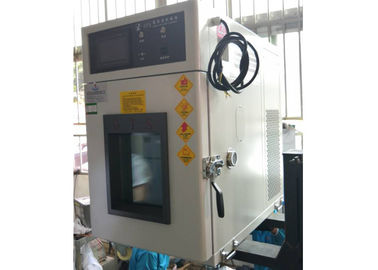

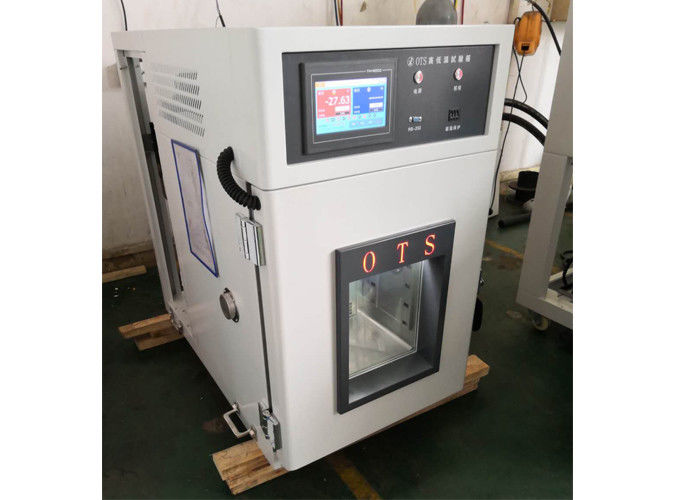

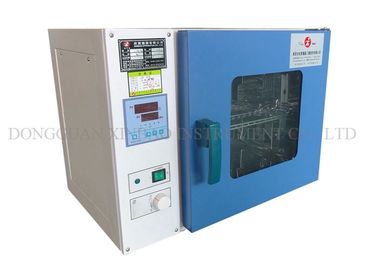

Desktop Enviromental climate humidity chamber , Thermal Temperature Test Chamber
Desktop Enviromental climate humidity chamber , Thermal Temperature Test Chamber is for testing material heat, cold, dry resistance, humidity resistance.
Manufactured samples, specimens, or components are placed inside the chamber and subjected to one or more of these environmental parameters to determine reliability or measure after-effects such as corrosion. In the case of machinery such as internal combustion engines, byproducts such as emissions are monitored.
|External size (W*H*D)CM||70*80*70||100*146*104||100*161*117||110*171*137||150*186*137||150*186*157|
|Temperature range||-70°C~+150°C(180°C)(A:-20°C B:-40°C C:-60°C D:-70°C )|
|Temp humidity||±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.|
|Temperature humidity||±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.|
|Heat/cooling time||About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )|
|Inner and outer materials||SUS#304 Stainless steel for inner chamber and|
|Carton Advanced cold plate nano paint for outer.|
|Insulation materials||Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials|
|Cooling system||Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C)|
|Protection devices||Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,|
|super humidity over-temperature protection switch, fuse, failure warning system|
|Parts||Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze|
|Controller||TEMI1500 TH-900C South Korea|
|Power||1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz|
A. Reliability testing based on current test standards in the temperature range of -70 °C to 180 °C and 10% to 98% R.H.
B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -70 ºC and 180 ºC.
C. Forced ventilation loops design, balance temperature & humidity control system .
D. We can provide custom-made machine and optional accessories satisfied your special requirements.
E. Improved programming and data collection via computer
F. Energy-saving operation, the XB-OTS-1000 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of OTS environmental test chambers the most energy efficient ever.
1. Are you a Manufacturer ? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer of Climatic Test Chamber,Mini Temperature Chamber,Temperature Humidity Chamber Price .Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
OTS Instrument Co., Ltd.
was established in 1978, with 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...
