Payment & Shipping Terms:
|Model Numbe:||XB-OTS-225||Product Name:||Easy Mobility Laboratory Climatic Testing Stability Temperature Humidity Chamber|
|Temperature Control:||-40°C ~ +150 °C||Humidity Control:||20%~98% RH|
|Body Materials:||SUS#304 Stainless Steel Plate||Controller:||OTS Designed Controller With LCD|
|Compressor:||Original France Tecumseh||Temperature Accuracy:||0.5°C|
high low temperature chamber,
temperature humidity test chamber

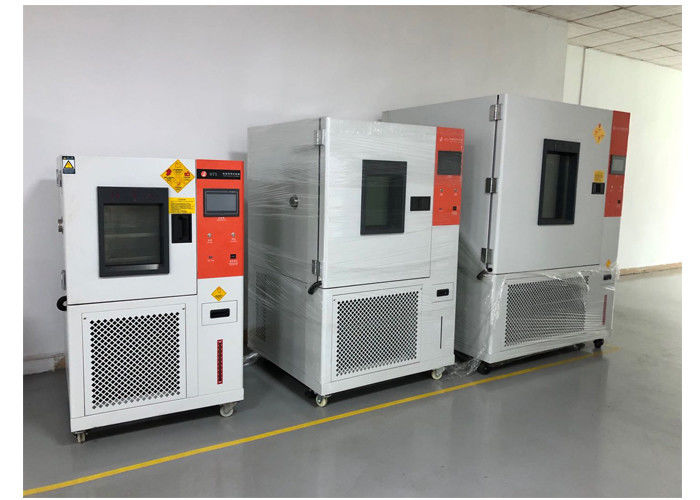

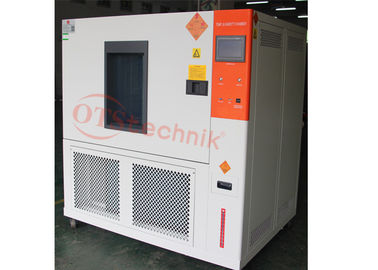

Easy mobility Laboratory Climatic Testing Stability Temperature Humidity Chamber
Easy mobility Laboratory Climatic Testing Stability Temperature Humidity Chamber is for testing material heat, cold, dry resistance, humidity resistance.
Manufactured samples, specimens, or components are placed inside the chamber and subjected to one or more of these environmental parameters to determine reliability or measure after-effects such as corrosion. In the case of machinery such as internal combustion engines, byproducts such as emissions are monitored.
1. Graceful appearance, circularly shaped body for , surface treated with mist strips and plane handle with no reaction. Our temperature humdity climatic chamber is easy to operate, safe and reliable.

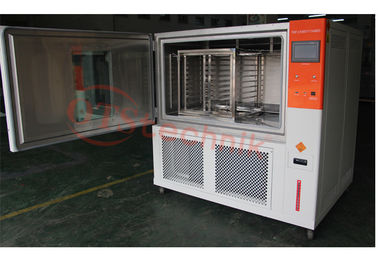

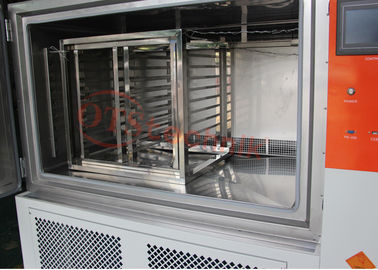

2. Rectangular double-glassed watching window for the observation of the test production during the testing process.The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R23, R404A)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The controller of environmental chamber has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
|External size (W*H*D)CM||90*136*94||100*146*104||100*161*117||110*171*137||150*186*137||150*186*157|
|Temperature range||-70°C~+150°C(180°C)(A:-20°C B:-40°C C:-60°C D:-70°C )|
|Temp humidity||±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.|
|Temperature humidity||±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.|
|Heat/cooling time||About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )|
|Inner and outer materials||SUS#304 Stainless steel for inner chamber and|
|Carton Advanced cold plate nano paint for outer.|
|Insulation materials||Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials|
|Cooling system||Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C)|
|Protection devices||Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,|
|super humidity over-temperature protection switch, fuse, failure warning system|
|Parts||Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze|
|Controller||TEMI1500 TH-900C South Korea|
|Power||1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz|
OTS Instrument Co., Ltd.
was established in 1978, with 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...
Please feel FREE to contact us if you have any needs.
Contact Person: Bonnie
