|Temperature Control Range:||-70°C ~ +150（180） °C||Refrigerant:||RS23/R404A|
|Power Supply:||220V Or 380V (Can Be Customized)||Body Materials:||SUS#304 Stainless Steel Plate|
|Controller:||OTS Designed Controller With LCD Touch Screen||Waterway Device And Circuit Device:||Separated|
|Compressor:||Franch Tecumseh||Warranty:||1 Year + 2 Months|
constant temperature chamber,
constant temperature humidity chamber

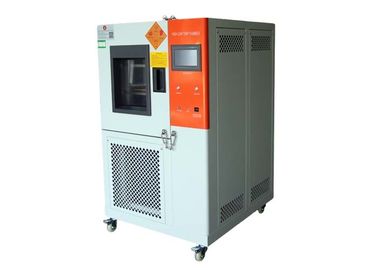

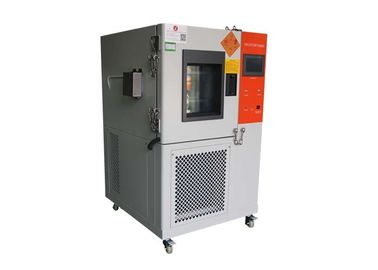

Laboratory Machine Energy Saving Temperature Humidity Environmental Chamber used is for testing material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,Communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials, medical, aerospaceand other products.
|Inner Chamber Size W*H*D(cm)||40*50*40||50*60*50||60*75*50||80*85*60||100*100*80||100*100*100|
|External Chamber Size W*H*D(cm)||90*142*100||100*152*113||110*167*113||130*177*123||150*192*144||150*192*163|
|Inner Chamber Volume(L)||80||150||225||408||800||1000|
|Temperature Range||-70°C~+150°C(180°C)(A:-20℃ B:-40℃ C:-60°℃ D:-70℃) (Optional)|
1.Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of uniformity within the box within ± 2 ℃
2. Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit, surface water pollution
3. Unique refrigerant servo valve flow control control. Power saving more than 30%; with the United States PWM combination design, low temperature working conditions, the heater does not participate in the work, through the PWM technology to control the refrigeration unit refrigerant flow and flow, Through the pipeline, hot bypass pipe three-way flow adjustment, to achieve the studio temperature automatically constant. This way in low temperature conditions, can achieve a 30% reduction in energy consumption, the machine power control in 8.5KW or less
4. Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface temperature condensation
5. The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within 75db
6. Qualified by ISO-9001, CE (Taiwan & Mainland)
1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. Do you have a branch company or service office in my country?
We have offices in the belowing:
The US Office: XIN BAO INSTRUMENT (US) LLP
Address: 1201 N Park Ave Tucson AZ 85719
Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD
Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.
Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd
Tel: (+65) 96857857
Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349
Italy Dealer :AMSE SRL
Address: Strada della Cebrosa 86, 10156 Torino Italy
Suzhou Branch: XIN BAO INSTRUMENT SUZHOU BRANCH
Tel:0512-67078249 Fax: 0512-67078749
Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province
Taiwan : TAIWAN XIN BAO INSTRUMENT CO.,LTD
Address: No. 551-1, 4, Central Road, Taichung City, Taiwan
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
