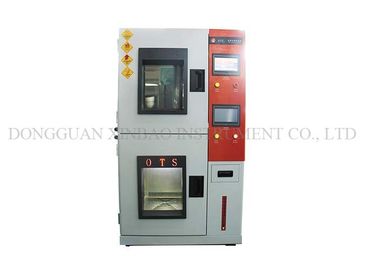

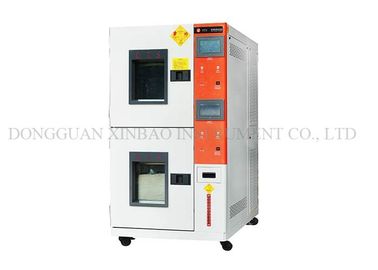

Extreme High / Low Temp Thermal Cycling Equipment , Temperature Controlled Thermal Cycling Test Chamber High Safety

Extreme High / Low Temp Thermal Cycling Equipment , Temperature Controlled Thermal Cycling Test Chamber High Safety
Extreme High / Low Temp Thermal Cycling Equipment , Temperature Controlled Thermal Cycling Test Chamber High Safety
video play

Large Image :  Extreme High / Low Temp Thermal Cycling Equipment , Temperature Controlled Thermal Cycling Test Chamber High Safety

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE; ISO
Model Number: XB-OTS-225
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped
Delivery Time: 20 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 350 sets per month
Detailed Product Description
Product Name: SUS304 Stainless Steel Extreme High And Low Temperature Testing Instrument Usage: Environmental Test Equipment
Temperature Range: -70°C To 180°C Temp Control Fluctuation: ≤±0.5℃
Temp. Uniformity: ≤±2℃ (Put 9 Sensor Into Inner Chamber With 9 Different Location To Get Uniformity ) Inner Size (W*H*D): 60*75*50cm
High Light:

benchtop thermal chamber

,

thermal cycling chamber

SUS304 stainless steel extreme high and low temperature testing instrument



Parameters:



Model XB-OTS-80 XB-OTS-150 XB-OTS-225 XB-OTS-408 XB-OTS-800 XB-OTS-1000
Inner Chamber Size W*H*D(cm) 40*50*40 50*60*50 60*75*50 80*85*60 100*100*80 100*100*100
External Chamber Size W*H*D(cm) 90*142*100 100*152*113 110*167*113 130*177*123 150*192*144 150*192*163
Inner Chamber Volume(L) 80 150 225 408 800 1000
Temperature Range -70°C~+150°C(180°C
(A:-20℃ B:-40℃ C:-60°℃ D:-70℃) (Optional)
Humidity Range Without

Control panel

Controller+ operation button+over heating protection device +RS232 and USB interface

Chamber materials

SUS#304 stainless steel for Inner chamber;
Steel plate for external chamber with thickness

Applications

For all types of electronic products quality inspection , electric appliance, and communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries products.

Package and shipment

(1). Strong standard wood case, inner plastic films wrapped.
(2). Usually we delivery the equipment by air,by sea or by express.

Warranty

A year's quality guarantee period starting from the date of acceptance of the equipment, in guarantee period, completely free maintenance (except natural disaster, abnormal power, people improper use and maintain causing the damage), in the condition of the buyer abiding by the rules of custody, use and installation, because of the test chamber manufacturing quality problem can't work normally, after the supplier be notified, in accordance with the service commitment of time will help the buyer solve the problem by email, if the buyer need that supplier send maintenance personnel to solve it,the buyer only need pay travel charge.
Equipment problems after warranty period, the supplier promise to give solution on time, discretion charge maintenance costs and the cost of raw materials.

Delivery Time  20 days after getting the payment



Design Standard:


GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6

Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature

EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle

IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle

EIA - 364-31C temp resistance GB/T2423.3 constant heat test method


Main Products:

Extreme High / Low Temp Thermal Cycling Equipment , Temperature Controlled Thermal Cycling Test Chamber High Safety 0

Why choose us:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

FAQ:

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.

If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. Whats the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.

Our Company:

OTS was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
