Payment & Shipping Terms:
|Product Name:||Fast Change Rate Temperature Cycling Test Chambers For LED Extended Life Testing||Temperature Range:||Temp Range From -40℃ To 150℃|
|Heating,Cooling Rate:||5.0 C / Min ,1.2 C / Min||Temperature Rate Of Change( ºC/Min):||3-20ºC/Min|
|After-sale Service:||1 Year Warranty, Maintenance For Lifelong||Inner Chamber Size:||1000*1000*1000mm|
|Humidity Range:||20%~98%R.H.(10%~98%R.H/ 5%~98%R.H)||Calibration:||Have Calibration Report Before Delivery|
thermal cycling test equipment,
thermal cycling chamber

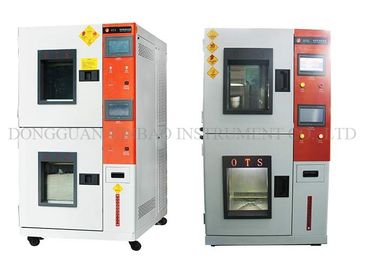

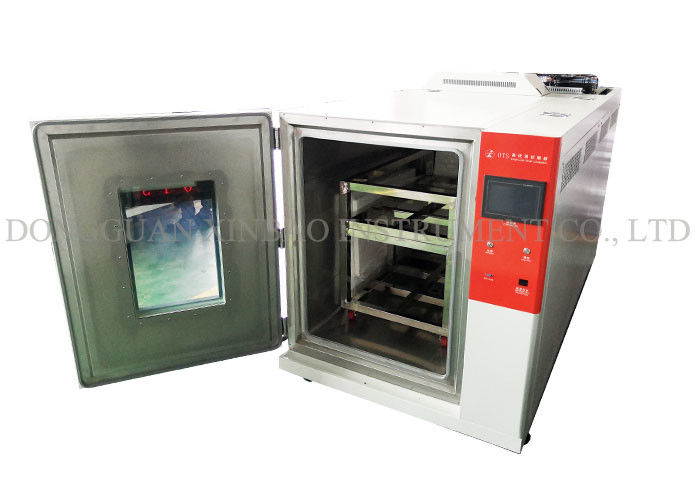

Fast Change Rate Thermal Cycle Test Chamber For LED Extended Life Testing
|Working Chamber Volume(L)||225||408||800||1000|
|Rapid Temp Change -55ºC~+85ºC Full Linear Control|
|Exterior||Cold-rolled steel sheet (Rust proof & Plastic Spray treated ) Stainless Steel|
|Interior||Stainless Steel Plate(SUS 304)|
|Insulation||Rigid Polyurethane Foam|
|Safety||Over pressure,over heat and over current protection for compressor,over temp.Protection,|
|Control||Balanced Temperature & Humidity Control System(BTC type)|
|Heater||Iron-chrome wire heater|
|Observatio||Glass incorporating heat generator|
|Controller||Touch screen programmable controller|
|Power||AC 380V/50Hz 3phase 5 wires+ Ground wire|
|Note:1.We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available|
Fast Change Rate Temperature Cycling Test Chambers for LED extended life testing is widely applied for quality inspection for all types of electric products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries by constant high low temperature change, damp heat etc environment simulation reliability test.
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C EIA - 364-59
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license
Customer Support Services:
Ø Training (Training customer employees)
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for Fast Change Rate Temperature Cycling Test Chambers for LED Extended Life Testing.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
OTS was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
