|Product Name:||Fully-automatic Accuracy Stainless Steel Walk In Temperature And Humidity Test Chamber||Color:||Custom|
|Controller:||Programmable LCD Touch Screen||Inner Chamber Materials:||SUS304|
|External Chamber:||R Material: Plate+painting Or Stainless Steel||Temperature:||-60℃~100℃|
|Refrigerant:||Environmental Friendly R23/R404A||Humiditity Range:||10%~98%RH|
|Heat Up & Cool Down Time:||About 3℃/min From Room Ambient To 100℃, About Average 1℃/min From Room Ambient To -60℃.|
walk in environmental chamber,
walk in climatic chamber

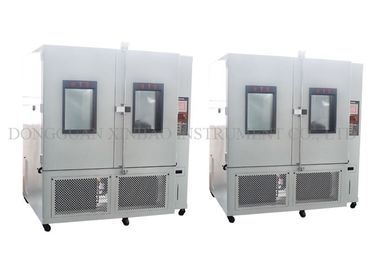

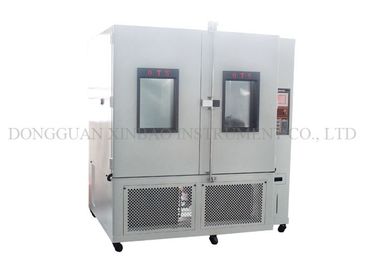

Fully-automatic Accuracy Stainless Steel Walk in Temperature And Humidity Test Chamber are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.
|Volume||10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements|
|Temperature range||-60 °C ~+100 °C|
|Accuracy/uniformity||±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.|
|Accuracy/volatility||±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.|
|Cooling time||5.0 °C /minute|
|Inside material||SUS#304 Stainless Steel|
|Insulation material||High-temperature high-density amino acid ethyl ester foam insulation materials,|
|Cooling system||Water-cooled / two-stage compressor|
|Protection||No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system|
|Accessories||recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball|
|Controller||German Siemens PLC or TH-900C Korea or TEMI|
|Compressor||France's Tecumseh Brand or Germany|
|Power||1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz|
1.Realize temperature constant value control and program control;
2.The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3.With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.
4.Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5.Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6.Customize size/customize indicators/customize various optional features
Related Testing Standard:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method
GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD – 202G – 103B humidity test
IEC60068-2-30 humidity temperature cycle
EIA - 364-31C wet resistance
GB/T2423.3 constant humidity heat test method
GJB150.4-86 military equipment environment test method for low temperature test
GJB150.3-86 military equipment environment test method for high temperature test
GB/T2423.34-2005 temperature and humidity combined cycle test method
GJB150.9-86 military equipment environment test method for humidity temperature test
Humidifying &Humidifying System:
(1) Electric & byte type humidifying system
(2) Stainless steel humidifying barrel with view window for water level
(3) ADP dehumidifying way
(4) Over temperature and overflow protection units
(5) P.I.D control Humidifying & dehumidifying systems separated
Humidity and Temperature Area:
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for -20℃ to 120℃ Precision Walk in climate test chamber for Accelerated Ageing Test.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
