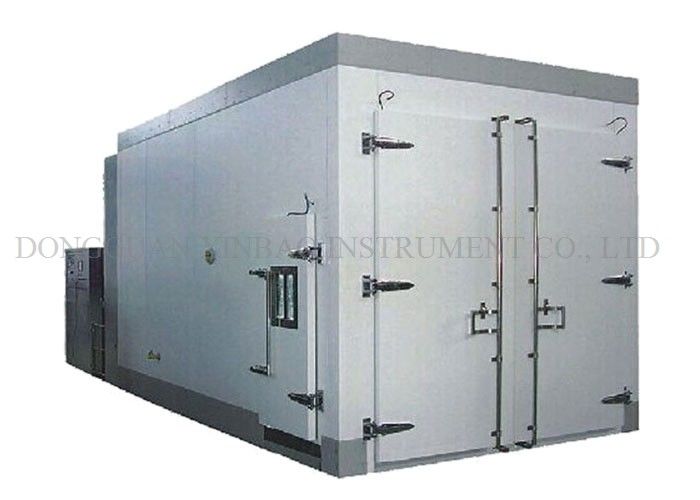

High Precision Walk In Test Chamber Environmental Friendly R23 / R404A Refrigerant

High Precision Walk In Test Chamber Environmental Friendly R23 / R404A Refrigerant
High Precision Walk In Test Chamber Environmental Friendly R23 / R404A Refrigerant
video play

Large Image :  High Precision Walk In Test Chamber Environmental Friendly R23 / R404A Refrigerant

Product Details:
Place of Origin: Guangdong Provice; China
Brand Name: OTS
Certification: CE; ISO
Model Number: XB-OTS-600E
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped
Delivery Time: 38 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100sets per month
Detailed Product Description
Product Name: Customizable Easy Operation Precise Walk In Climate Testing Chamber For Car Parts Inner Chamber Materials: SUS304
External Chamber: R Material: Plate+painting Or Stainless Steel Temperature: 30℃~100℃
Refrigerant: Environmental Friendly R23/R404A Heat Up & Cool Down Time: About 3℃/min From Room Ambient To 100℃, About Average 1℃/min From Room Ambient To -60℃.
Interior Size: 2.6(W)*2.6(H)×2.1(D)m Humidity Range: 65%~98% R. H.
High Light:

walk in environmental chamber

,

walk in climatic chamber



High Precision Walk In Test Chamber Environmental Friendly R23 / R404A Refrigerant




Introduction:


Customizable easy operation precise walk in climate testing chamber for car parts are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.





Technical parameters:



Model XB-OTS-600E
Volume 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements
Temperature range 30°C ~+120 °C
Humidity range 65%~98%R.H.
Accuracy/uniformity ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.
Accuracy/volatility ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.
Cooling time 5.0 °C /minute
Inside material SUS#304 Stainless Steel
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Water-cooled / two-stage compressor
Protection No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
Accessories recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball
Controller German Siemens PLC or TH-900C Korea or TEMI
Compressor France's Tecumseh Brand or Germany
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
Humidity range midity and Temperature Area:High Precision Walk In Test Chamber Environmental Friendly R23 / R404A Refrigerant 0
After-sale service

A year's quality guarantee period starting from the date of acceptance of the equipment, in guarantee period, completely free maintenance (except natural disaster, abnormal power, people improper use and maintain causing the damage), in the condition of the buyer abiding by the rules of custody, use and installation, because of the test chamber manufacturing quality problem can't work normally, after the supplier be notified, in accordance with the service commitment of time will help the buyer solve the problem by email, if the buyer need that supplier send maintenance personnel to solve it,the buyer only need pay travel charge.

Equipment problems after warranty period, the supplier promise to give solution on time, discretion charge maintenance costs and the cost of raw materials.





Humidifying &Humidifying System:



(1) Electric & byte type humidifying system

(2) Stainless steel humidifying barrel with view window for water level

(3) ADP dehumidifying way

(4) Over temperature and overflow protection units
(5) P.I.D control Humidifying & dehumidifying systems separated



Related Testing Standard:

  1. GB/Bb T2423.2-89 high temperature test method
  2. GB2423.1-89 test A: low temperature test method 6
  3. Ab IEC60068-2-1 low temperature test method
  4. GJB150.4-1986 test at low temperature
  5. EIA - 364-59 test at low temperature
  6. IEC60068-2-38 temperature cycle
  7. IEC60068-2-78 constant humidity temperature
  8. MIL - STD – 202G – 103B humidity test
  9. IEC60068-2-30 humidity temperature cycle
  10. EIA - 364-31C wet resistance
  11. GB/T2423.3 constant humidity heat test method
  12. GJB150.4-86 military equipment environment test method for low temperature test
  13. GJB150.3-86 military equipment environment test method for high temperature test
  14. GB/T2423.34-2005 temperature and humidity combined cycle test method
  15.  GJB150.9-86 military equipment environment test method for humidity  temperature test



Using conditions:



A. Room temp shall be 5~30℃; Relative humidity shall be ≤85%R.H.
B. This machine shall be installed on a flat ground without vibration.
C. This machine shall be installed in a place away from inflammable, explosive, corrosive substances and dust.
D. This machine shall be sited in a well ventilated place without direct sunshine.
E,Equipment installation site shall be clean, less dust.




Package and shipment:


(1). Strong standard wood case, inner plastic films wrapped for MCustomizable easy operation precise walk in climate testing chamber for car parts.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.



High Precision Walk In Test Chamber Environmental Friendly R23 / R404A Refrigerant 1
