| Model Numbe: | XB-OTS-800P | Product Name: | IP68 IP66 IP54 Environmental Simulation Sand Dust Test Chamber |
|---|---|---|---|
| Dust Concentration:: | 2kg/m3~5kg/m3, Should Be Replaced | Dust Type: | Powdered Cement, Dry Talcum Powder |
| Blower: | Centrifugal Fan | Environment Temperature And Humidity:: | 15~45c, 45~75%Rh |
| Sieves Hole Size: | 75um | Wire Netting Wire: | 50um |
| Dimension: | All Size Customized | ||
| Highlight: | climate control chamber,temperature and humidity chamber |
||
IP68 IP66 IP54 environmental simulation sand dust test chamber
Introduction
The Dustproof Test Chamber is according to IEC60529, IEC 60598, GB2423.37-89 (Test L:dust test methods), GB 4208-93
protective casing grade (IP code), GB/T 4942.2-93(protective casing grade of low-voltage apparatus), GB 7000.1-1996,
GB 7001-1986 (protective casing grade of lamps),DIN40050 and IP5K0.
Specifications :
| Product name | Environmental simulation sand dust test chamber |
| Test chamber dimension | 800*800*800mm ( accept customized inner chamber size too) |
| Outer dimension | according to inner structure |
| Metal screen wire diameter | 50um |
| Screen line space | 75um |
| Environment temperature and humidity | 15~45°C, 45~75%RH |
| Dust(talcum powder) concentration | 2~4kg/m3 |
| Test time | Dust test time set freely, 0~999.9hr |
| Test dust | Dry talcum powder or port land cement |
| Test standards | GB4706,GB2423,GB7000.1,IEC60529 |
| Cable hole | φ50mm(circumscribed power accepted) |
| Power supply | AC 2ψ3W220V 50HZ 2.5KW |

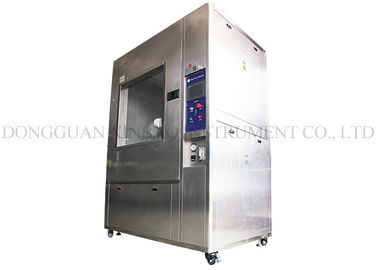

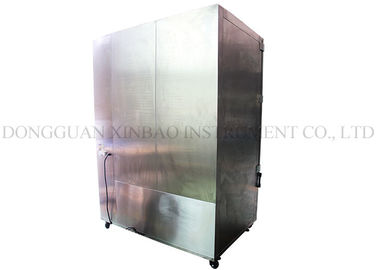

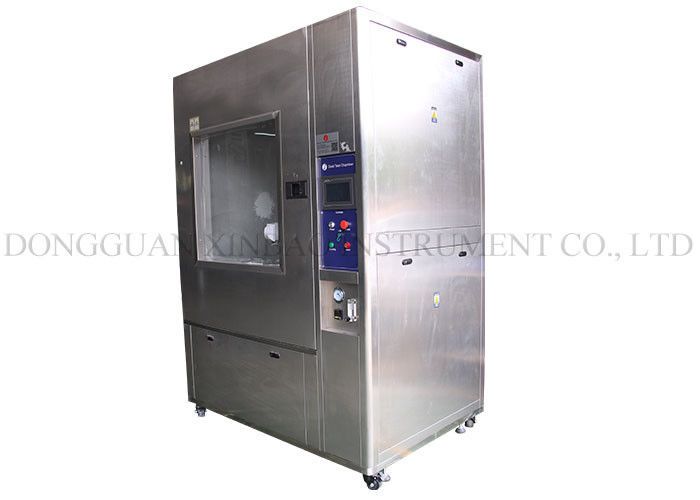

Chamber picture for reference
Standard Features of IP68 IP66 IP54 environmental simulation sand dust test chamber
• Dust re-cycle blowing by circulating pump.
• Dust collection section is located on bottom of test chamber.
• A heater fixed into test chamber to keep dust dry.
• A viewing window with a manually controlled wiper.
• Programmable color display touch screen controller
• A stainless steel shelf for placing test specimens.
• Test chamber internal illumination
• Vacuum system for specimen
• Bottom install 4 castors for ease moving, andwith brakes function
• Safety protection
• Easy to operate
• Standard: IEC60529
Inner chamber for reference
Structure:
1. LCD Touch Screen Programmable Sand and Dust IP Test Chamber Inner material: Stainless steel (SUS #304)
2. LCD Touch Screen Programmable Dust Proof Test Equipment Outer material: Powder painting steel plate
3. Dust Test Equipment use imported touch screen programmable controller, can control dust blowing
motor, dust vibration and test time.
4. With sealing good chamber door, has lock device and glass observation window.There is lamp and dust
brush to ensure easy observation of inner chamber.
5. With strong dust blowing device and vibrator to ensure informity of each blowing.
6. Circulating air supplying device: Frequency converter and high pressure motor to ensure the air volume
more precision.
7. Large diameter strong stainless steel air hose, covered with heating device, can heat and dry the test
chamber dust.
8. Anti-explosion handle, easy operation, strurdy and durable.
9. Imported high-precision electronic temperature humidity sensor and air speed sensor.
10. Test sample differential pressure test device, can set pumping rate freely according to sample inquiry.
11. There is a ψ50mm test hole on the left chamber and equipped with port lid and silica gel chock plug.
Through this hole can connect to outer test device.
12. There are casters with brake equipments and fixing foot pad to make the machine easy operation and
level adjustment.
13. With voltage current indicator, equipped with corresponding sample DC12V power, DC24V/20A, interval, continuous power supply adjustable. Dust concentration wind speed regulating function. May control test total time, blow the dust of time interval and blowing dust cycle and sample with the power source of the intermittent time.
14. Vacuum system: Equipped with pressure meter, air filtration, dust dehumidification system, regulating
triple pieces, connecting pipe (Vacuum pump should be prepare by customer)
Please feel FREE to contact us if you have any needs.
