Payment & Shipping Terms:
|Center Distance Of Wear Wheel::||63.5mm||Speed Of Rotation:||60r/min|

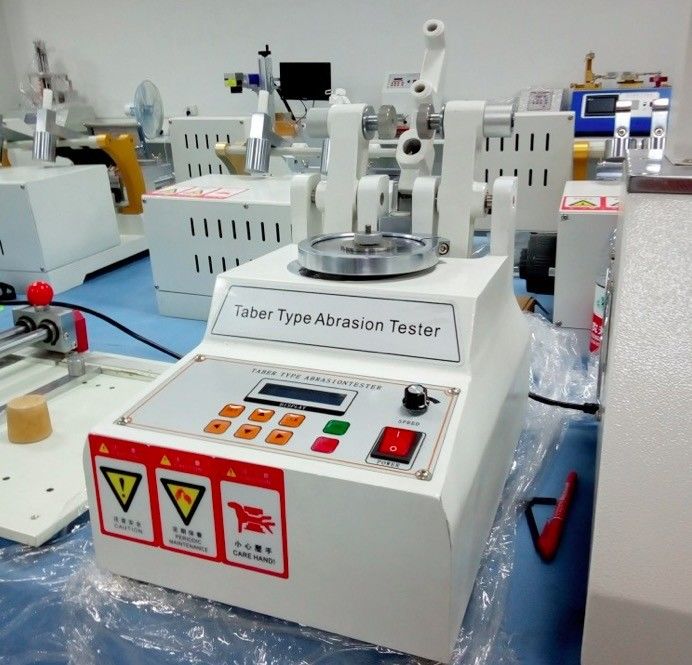

ISO9001 Taber Abrasion Tester,
Taber Abrasion Tester Pressure Slice Testing,
Taber Abrasion Tester 35 Kg
Taber Abraser Tester Measured By The TABER Abrasion Tester.
The wear resistance of the material is measured by the TABER abrasion tester.
Wear resistance tests are carried out to evaluate the wear resistance of products, such as mass loss, thickness loss and transmittance.
Taber Abraser Tester is used in the test plane, such as: travel box, carpet, cardboard, clothing, glass, plastic coating, tile, metal coating, paint, varnish, decoration thin.
Film, high pressure slice, plastic, textile, elastic floor mat, traffic paint, anodized layer, blanket, electronic component, decorative board, wax, label, leather jacket, dental material, car ,Ornaments, resins, furniture, etc.
Specification for reference
|Test sepcimen||internal diameter (D) 3mm|
Ф 2 "(Max.45mm) (W) 1/2"
standard configuration : TABER United States imported imported grinding wheel *1 pair
|Center distance of wear wheel:||63.5mm|
|The center distance between the wear wheel and the test disc||37 ~ 38mm|
|Speed of rotation||60r/min|
|the distance between the test film and the suction mouth||3mm|
|Standards :||DIN53754,53799,53109,52347,TAPPI T476,ASTM D3884,ISO 54701,EN660|
The unique abrasion process of the TABER abrading test machine puts the materials to be placed on the turntable, and the two grinding wheels press on the material with a certain weight to make them wear.
The grinding wheel rotates with the rotating surface of the sample plate, resulting in relative motion and wear, and the shift of the grinding wheel axis relative to the rotating shaft of the rotating disk leads to the friction material.
When the sample area of 10x10cm is worn, the surface material of the sample is worn by all angle grain or silk fabric to form a complete ring.
Simulate the real use conditions or meet the standard test conditions.
1.- a variety of wear media and accessories can be selected for different tests.
2.- repeat tests at the same point at the same material. The material with the thickness of about 0.5 is damaged or worn out.
3.- you can set two speeds (60, 72 RPM), 4 revolutions (100, 500, 1000 or 2500 turns) and two kinds of loading.
