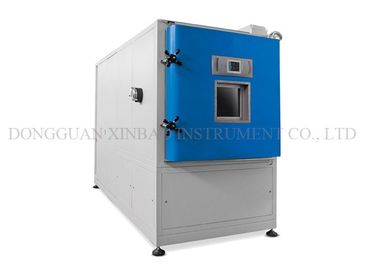

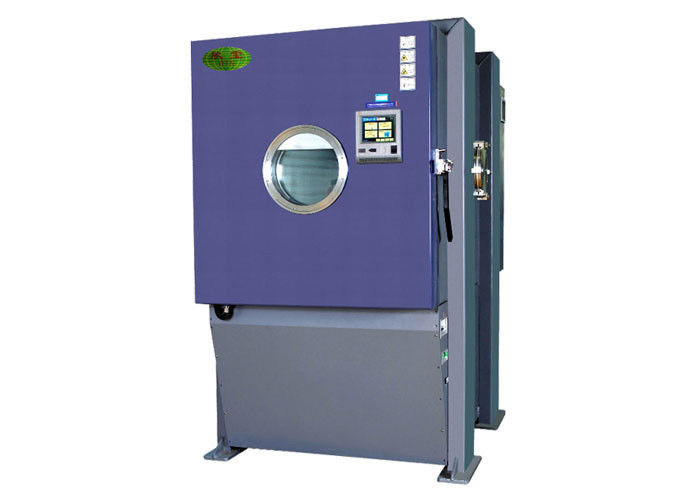

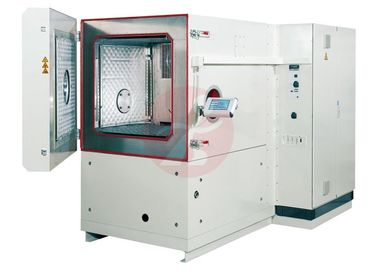

Low Air Pressure Humidity And Temperature Controlled Altitude Test Chamber High Precision

Low Air Pressure Humidity And Temperature Controlled Altitude Test Chamber High Precision
Low Air Pressure Humidity And Temperature Controlled Altitude Test Chamber High Precision Low Air Pressure Humidity And Temperature Controlled Altitude Test Chamber High Precision Low Air Pressure Humidity And Temperature Controlled Altitude Test Chamber High Precision

Large Image :  Low Air Pressure Humidity And Temperature Controlled Altitude Test Chamber High Precision

Product Details:
Place of Origin: China
Brand Name: OTS
Certification: CE Certification
Model Number: XB-OTS-408M
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for 1kPa Combined Temperature Humidity and Low Air Pressure Altitude Test Chamber
Delivery Time: 45 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Model Numbe: XB-OTS-408M Product Name: 1kPa Combined Temperature Humidity And Low Air Pressure Altitude Test Chamber
Temperature Control: -70°C ~ +150 °C Humidity Control: 20%~98% RH
Power Supply: 220V / 380V, 50Hz / 60Hz Customized Acceptable Refrigerant: Environmental Friendly R404A/R23
Body Materials: SUS#304 Stainless Steel Plate Application: Electronic,Auto,plastic,Instrument
Pressure Range: 101kpa ~1kpa Cooling Rate: 0.7c~1.0c/Min (Average)
High Light:

high low temperature chamber

,

stability test chamber

1kPa Combined Temperature Humidity and Low Air Pressure Altitude Test Chamber



Introduction:

1kPa Combined Temperature Humidity and Low Air Pressure Altitude Test Chamber is used in different industries like the instruments and meters, electrical products, materials, spare parts, equipment, etc, but mainly in aviation, aerospace, information, electronics and other industries. This machine can be operated at a low pressure, high temperature, low temperature, under the effect of single factor or multiple conditions at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen.





 Technical parameters:



Inner Size W1747*H800*D720mm
External Size (About) W2197*H2200*D2670mm
Temperature Range -6℃~+43℃
Temperature Fluctuation ≤±0.5℃(Atmospheric pressure, no load, constant state)
Temperature Uniformity ≤±2℃(Atmospheric pressure, no load, constant state)
Temperature Deviation ≤±2℃(Atmospheric pressure, no load, constant state)
Humidity Without
Rise And Fall Rate

Air temperature: -40 ℃ → +85 ℃, the whole average ≥ 1 ℃ / min, atmospheric pressure, no load

Air temperature: +85 ℃ → -40 ℃, the whole average ≥ 1 ℃ / min, atmospheric pressure, no load

Pressure Range 20Kpa-60Kpa
Buck Rate

Normal pressure ~ 10kPa step-down time ≤ 30min (step-down rate control)

Pressure recovery rate: ≤10.0kPa / min (boost rate control)

Pressure Deviation

When the pressure is ≥40KPa: ≤ ± 2KPa

When the pressure is 4KPa ~ 40KPa: ≤ ± 5%

Pressure ≤ 4KPa: ≤ ± 0.1KPa

Meet The Standard GB / T 2423.21-2008 Basic environmental test procedure for electric and electronic products - Test M Low pressure test method
Pollution, Electromagnetic Radiation Meet the relevant standards
Noise ≤80dB
Total Power About 40 KW
Voltage 380V±10%; 50 Hz;Three-phase four-wire + ground wire

The technical data of the above products are in the temperature of 25 ℃, relative humidity ≤85% RH, (cooling water temperature 5 ~ 28 ℃, water supply pressure 0.2Mpa ~ 0.4Mpa), the test box no load, temperature / pressure Constant two hours after the conditions measured.



Working Principle】
Pneumatic Working Principle The central controller detects the real-time signal from the sensing element and compares it with the set pressure signal to obtain a comparison signal. The control device outputs a bit switch signal to control the opening and closing of the vacuum pump valve and the high vacuum pneumatic ball valve. To achieve the purpose of automatic control pressure. Restore the pressure process, when the need to restore pressure, then open the high vacuum baffle valve, filled by the inflatable joints required gas
Temperature Working Principle The central control system is amplified according to the temperature signal collected in the box, the analog / digital conversion, the non-linear correction and the temperature set value (target value) are compared, the resulting deviation signal by the PID operation, the output adjustment signal automatically Control the size of the output power of the heater, so that the heating and heat dissipation in the laboratory to achieve a dynamic balance, and ultimately achieve the purpose of constant temperature.






Features
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7. Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application


Standard configuration
Two sample holders; an observation window; φ25 or φ50 cable hole.

Optional parts
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.

Structure
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.

Material
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)

Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode

Low Air Pressure Humidity And Temperature Controlled Altitude Test Chamber High Precision 0
