|Power:||Electronic||Usage:||Universal Testing Machine|
|Grips:||Customized Depends Of Different Test||Control Mode:||Microcomputer Or PC Control|
|Motor:||Servo Motor||Test Speed:||0.5~500 Mm/min|
|0.01mm:||Stroke Resolution||Force Precision:||±0.5%|
tensile strength testing equipment,
universal tensile tester

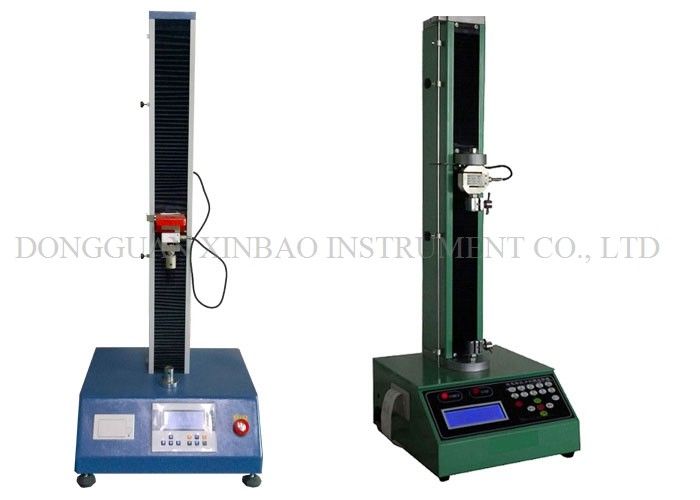

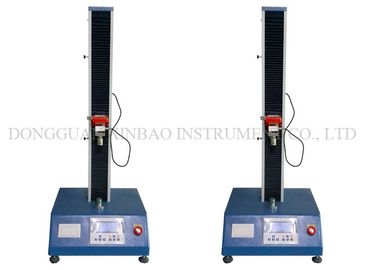

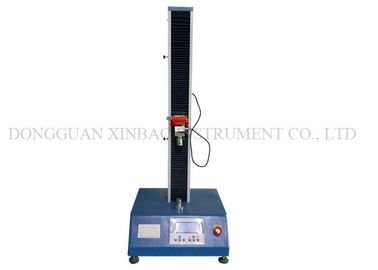

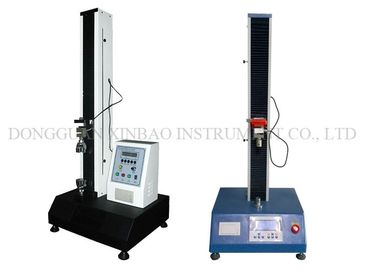

Material Tensile Strength Testing Machine Electronic Power 5KN Max Capacity
Fast Shipping Steel Tensile Test,Tension Test Machine,Material Testing Machine can test various materials (both finished and semi-finished products of tensile strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
Latest Tensile Testing Equipment,Utm Tensile Strength Test Machine,Universal Tensile Strength Testing Machine Price is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.
|Force capacity||1000kg,2000kg,5000kg(It is optional.) can be setting|
|Induction method||Precision load cell (sensor)|
|Max. Load Capacity||5KN|
|Force Resolution/Accuracy||± 0.5%|
|Test width||400mm(Standard specifications
special specifications can be customized)
|Machine Dimension (W*D*H)||800×530×1600mm (L*W*H)|
|Power system||Servo drive + servo motor + precision ball screw
transmission (Panasonic or Taiwan king serve import)
|Displacement Control||Displacement encoder count with four frequency technology|
|So that the displacement of four times|
|the resolution can up to 0.0005mm|
Force system: servo drives + Servo motor + precision ball screw drive
Control system:Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System : TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher
Obtain data: The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics
ASTM D903,F2258,GB/T 2790/2791/2792, CNS-11888,JIS K6854,GB/T 6329,BS EN 14410-2003,YY/T 0729,GOST 21751 and other standards.
1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer of Fast Shipping Steel Tensile Test,Tension Test Machine,Material Testing Machine. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation,we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
