Payment & Shipping Terms:
|Sine Thrust:||600kgf||Frequency Range:||5～2000Hz|
|Continued Displacement:||51mm||Maximum Speed:||2m/s|
|Maximum Acceleration:||981m/s2||Moving Coil Diameter:||Φ150mm|
|Allow Eccentric Moment:||＞190N.m|
shaker test equipment,
vibration lab equipment

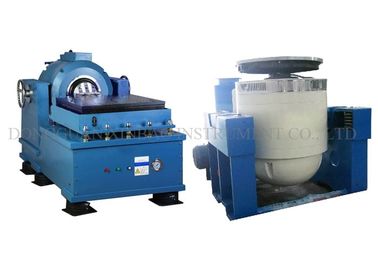

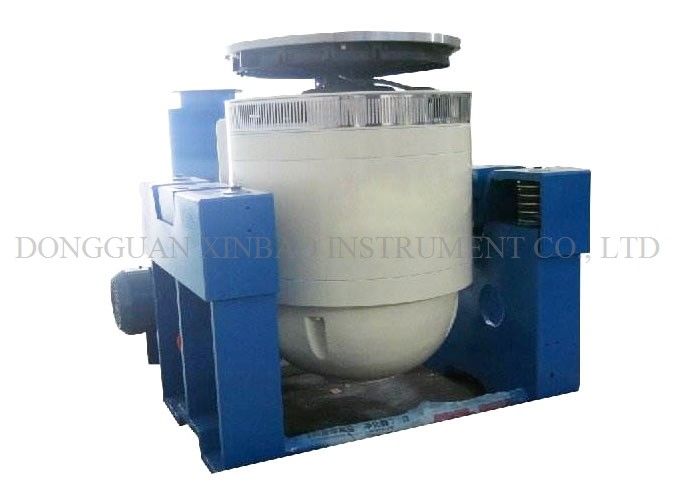

Mechanical Precision Vibration Testing Machine Φ150mm Moving Coil Diameter
1,Name: Vibration test machine
System Performance parameters
|The impact of displacement||51mm|
|Moving coil diameter||Φ150mm|
|Allow eccentric moment||＞190N.m|
|Load connection point||6 piont|
|Equivalent mass of moving parts||6kg|
|Countertops screw size (standard)||M8|
|Screw layout table (diameter, circumference)||8 on Φ100mm,8 on Φ,200mm.|
|Axial isolation frequency||＜3Hz|
|Maximum load||120Kg (customer request 45Kg)|
|Magnetic flux leakage||＜1mT|
|Dimensions (without packaging)(L×W×H)||1600mm×985mm×850mm|
|Vibration table Weight||1850kg|
|System Protection||The entire power amplifier has: Grid overvoltage, undervoltage power grid phase, logical failure, power module protection, power module temperature, output overcurrent, output overvoltage, power supply, displacement units, units body temperature, external linkage, etc. protection circuit, when any fault occurs, turn off the output, sound and light alarm. In addition to the above protection, it also has a protective function RMS values of tolerance protection, emergency stop devices, such as improving running.|
|Rated output voltage||120Vrms|
|Vertical extension table|
OTS Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
2.Equipment Operation Test Technology training;
4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
1. Are you manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. Do you have a branch company or service office in my country?
Yes,we have branchs over the world.
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
