|Model Numbe:||XB-OTS-408||Product Name:||Multi-function Customized Climatic Simulation Temperature Humidity Test Chamber|
|Temperature Control:||-70°C ~ +180 °C||Humidity Control:||20%~98% RH|
|Body Materials:||SUS#304 Stainless Steel Plate||Compressor:||Original France Tecumseh|
|Power:||Electronic||Place Of Origin:||Original France Tecumseh|
temperature humidity test chamber,
stability test chamber

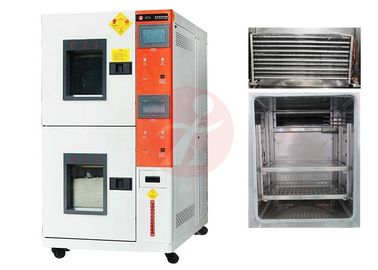

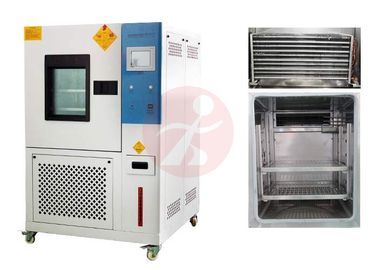

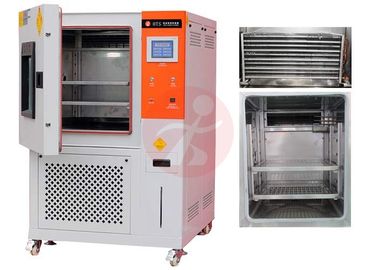

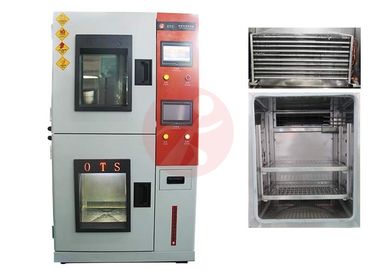

Multi-function customized climatic simulation temperature humidity test chamber
Multi-function customized climatic simulation temperature humidity test chamber is for testing material heat, cold, dry resistance, humidity resistance.
Manufactured samples, specimens, or components are placed inside the chamber and subjected to one or more of these environmental parameters to determine reliability or measure after-effects such as corrosion. In the case of machinery such as internal combustion engines, byproducts such as emissions are monitored.
|External size (W*H*D)CM||90*136*94||100*146*104||100*161*117||110*171*137||150*186*137||150*186*157|
|Temperature range||-70°C~+150°C(180°C)(A:-20°C B:-40°C C:-60°C D:-70°C )|
|Temp humidity||±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition.|
|Temperature humidity||±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H.|
|Heat/cooling time||About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition )|
|Inner and outer materials||SUS#304 Stainless steel for inner chamber and|
|Carton Advanced cold plate nano paint for outer.|
|Insulation materials||Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials|
|Cooling system||Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C)|
|Protection devices||Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,|
|super humidity over-temperature protection switch, fuse, failure warning system|
|Parts||Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze|
|Controller||TEMI1500 TH-900C South Korea|
|Power||1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz|
1. Graceful appearance, circularly shaped body for , surface treated with mist strips and plane handle with no reaction. Our temperature humdity climatic chamber is easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process.The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R23, R404A)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The controller of environmental chamber has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for Multi-function customized climatic simulation temperature humidity test chamber
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
Please feel FREE to contact us if you have any needs.
