|Product Name:||Precise PLC Programmable Salt Spray Corrosion Test Equipment For Pain Coating Testing||Body Material:||SUS#304 Stainless Steel Plate|
|Volume Of Test Box:||800L||Inside Dimension:||160*100*50cm(L*W*H)|
|Inside Temperature:||Brine Test Method(NSS ACSS)35°C±1°C/Corrosion Resistance Test Method (CASS)50°C±1°C||Spray Method:||Continuous Spraying|
salt spray corrosion test chamber,
salt spray cabinet

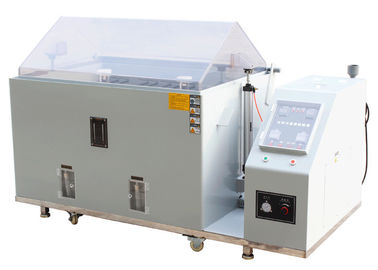

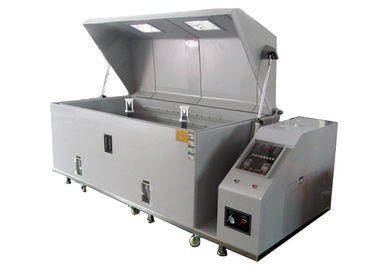

Precise PLC programmable salt spray corrosion test equipment for pain coating testing
NPrecise PLC programmable salt spray corrosion test equipment for pain coating testing is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
|Inner size (cm)||60x45x40||90x60x50||120x80x50||160x100x50||200x100x50|
|Inside temp||Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method.|
|Brine temp||35°C±1°C 50°C±1°C|
|Test chamber volume||108L||270L||480L||800L||1440L|
|Brine chamber volume||15L||25L||40L||40L||40L|
|Compressed air pressure||1.00±0.01kgf/cm2|
|Spray volume||1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)|
|Test room relative humidity||85%RH or more|
|PH||6.5~7.2 or 3.0~3.2|
|Spray method||Programmable spray (including the continuous spray interrupted spray)|
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117
1.The Salt Spray Test Machine is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3.Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4.Control System High precision P.I.D. temperature control meter with its error ±0.1°C.
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license
Customer Support Services:
Ø Training (Training customer employees)
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for Precise PLC programmable salt spray corrosion test equipment for pain coating testing
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
