|Inner Chamber Size:||W80*H85*D60cm||Compressor:||Original Germany Brand|
|Controller:||Programmable LCD Touch Screen||Body Materials:||SUS#304 Stainless Steel Plate|
|Quality:||Certificated ISO9001 CE Thermal Shock Chamber||Refrigerant:||Environmental Friendly R23/R404a|
|Cable Port:||External Power||System:||P.I.D+S.S.R+Micro-coemmputer Balanced Temperature Control|
temperature testing equipment,
thermal shock machine

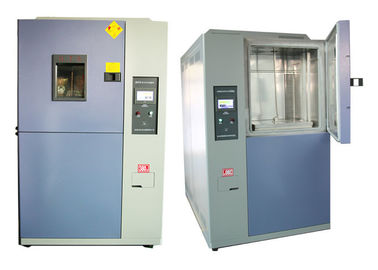

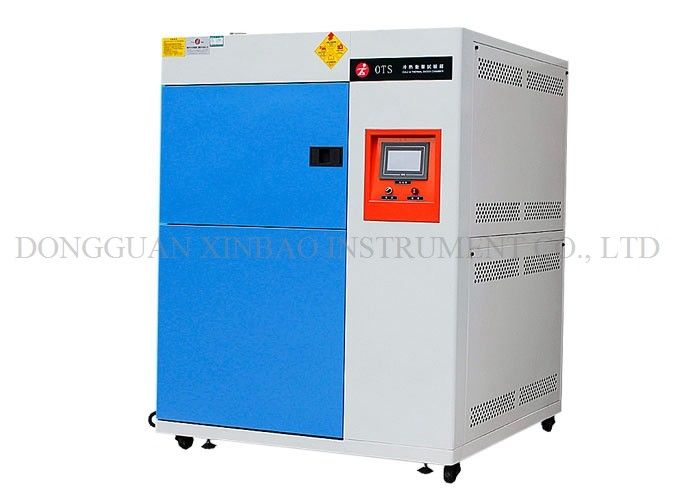

Fast Shipping Temperature Thermal Shock Chamber Fast Changing Temperature Test used to test the material structure or composite material in an instant by the extremely high temperatures and very low temperature continuous environment which can endure the degree of order in the shortest possible time to test its thermal expansion and contraction caused by chemical changes physical harm. The applicable the object material, including metals, plastics, rubber, electronic, ..., etc., High quality thermal shock test chamber can be used as the basis of its product improvement or reference.
|Inner size WxHxD(cm)||36×40×35||40×50×40||50×60×50||60×75×50||80×85×60|
|External size WxHxD(cm)||138x180x155||150X190X160||190x200X195||210x220X205||225x250x220|
|Shock Temperature ragne||-65°C~150°C|
|Heating up time||RT~200°C about 35min|
|Cooling down time||RT~-70°C about 90min|
|Temp recover time/change time||≤5min / ≤10sec|
Temp control accuracy/
|±0.5°C / ±2.0°C|
SUS 304# stainless steel plate for inner chamber,and stainless steel plate
+ spray painting for external chamber.
|Insulation materials||High-temperature high-density amino acid ethyl ester foam insulator material.|
|Systems||P.I.D+S.S.R+Microcomputer balanced temperature control system.|
Semi-hermetic two-stage compressor (water-cooled) /
hermetic two-stage compressor (air-cooled).
Fuse switch, high and low pressure protection switch compressors,
refrigerant pressure protection switch failure warning system, electronic siren.
Outlook window (special purchase), the upper and lower adjustable
compartment two energized measured line hole, casters,level bracket.
|Power||3 phase AC380V 50HZ/60HZ|
|Controller||Taiwan TATO or TH900C|
Ø 35 years experiences
Ø 24 hours online
Ø Best price, fast delivery
Ø Oversea offices
Ø Sample chamber of each model
Ø Own import and export business license
Customer Support Services:
Ø Replacement parts
Ø Preventative maintenance
Ø Assistance via phone or internet
Ø Training (Training customer employees)
Ø On-site diagnosis and repair/online diagnosis and repair
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
