Payment & Shipping Terms:
|Product Name:||New Design Of Continuous/Periodic/Programmable Salt Spray Test Chamber||Power:||Electronic, Electronic, AC220V 50Hz|
|Usage:||Salt Spray Testing||Body Material:||SUS#304 Stainless Steel Plate|
|Spray Volume:||1.0~2.0ml/80cm2/h||Laboratory Temperature:||NSS.ACSS 35°C ±1°C/ CASS 50°C|
|Test Room Relative Humidity:||85%RH Or More||Volume Of Test Box:||600L|
salt spray corrosion test chamber,
salt spray cabinet

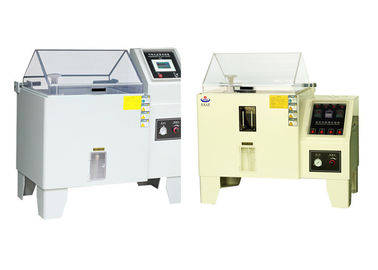

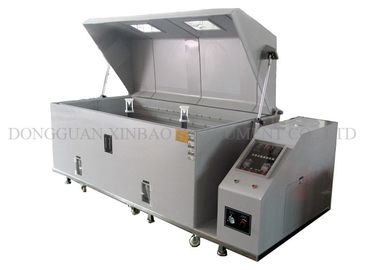

Programmable Salt Spray Test Chamber High Precision With Tower Spraying System
New Design of Continuous/Periodic/Programmable Salt Spray Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
|Inner size (cm)||60x45x40||90x60x50||120x80x50||160x100x50||200x100x50|
|Inside temp||Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method.|
|Brine temp||35°C±1°C 50°C±1°C|
|Test chamber volume||108L||270L||480L||800L||1440L|
|Brine chamber volume||15L||25L||40L||40L||40L|
|Compressed air pressure||1.00±0.01kgf/cm2|
|Spray volume||1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)|
|Test room relative humidity||85%RH or more|
|PH||6.5~7.2 or 3.0~3.2|
|Spray method||Programmable spray (including the continuous spray interrupted spray)|
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117
1.The Salt Spray Test Machine is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3.Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4.Control System High precision P.I.D. temperature control meter with its error ±0.1°C.
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license
Customer Support Services:
Ø Training (Training customer employees)
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
OTS was established in 1978, with over 35 years’ history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...
(such as constant temperature and humidity chambers, environmental chambers, thermal shock test
chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber,
tensile testing machine, universal testing machine,carton compression testing machines, bursting
strength testing machine, vibration test, etc.) ...
OTS has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing
requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing
process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI,
AATCC, IEC, VDE...
Package and shipping
(1). Strong standard wood case, inner plastic films wrapped for New Design of Continuous/Periodic/Programmable Salt Spray Test Chamber.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
