|Model Numbe:||XB-OTS-150||Product Name:||Reliability Testing PUR Foam Insulation Climatic High Low Temperature Chamber|
|Temperature Control:||-60°C ~ +150 °C||Refrigerant:||Environmental Friendly R404A/R23|
|Body Materials:||SUS#304 Stainless Steel Plate||Controller:||OTS Designed Controller With LCD|
|Color:||White||Usage:||Universal Testing Machine,environmental Test Chambers|
climate control chamber,
temperature and humidity chamber

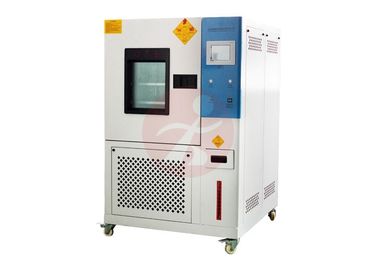

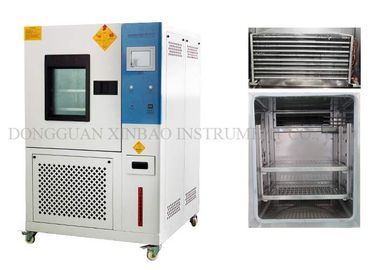

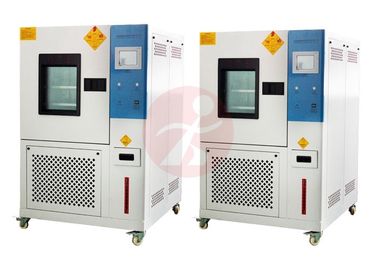

Reliability Testing PUR Foam Insulation Climatic High Low Temperature Chamber
Simulate high and low temperature environments in Associated Environmental Systems bench top or floor model temperature chambers.
1) Working volume from 64 to 1000 cubic L.
2) Conform to commercial and military standards for high and low temperature tests.
3) Self-contained single-stage refrigeration systems support low temperatures to -158°F / -70°C.
4) Two-stage cascade refrigeration systems support low temperatures to -140°F/-60°C. The two separate closed refrigerant circuits each use a different refrigerant with its own compressor.
|Inner Chamber Size W*H*D(cm)||40*50*40||50*60*50||60*75*50||80*85*60||100*100*80||100*100*100|
|External Chamber Size W*H*D(cm)||90*142*100||100*152*113||110*167*113||130*177*123||150*192*144||150*192*163|
|Inner Chamber Volume(L)||80||150||225||408||800||1000|
|Temperature Range||-70°C~+150°C/180°C(A:-20℃ B:-40℃ C:-60°℃ D:-70℃) (Optional)|
There are many types of test chambers, but they all high and low temperature limits.
Let's take a look at the typical high temperatures thresholds and why they exist.
Test chambers usually have wire heaters made of a material called Nichrome. By placing successive loops of heater wire, a greater amount of heat that is generated. The result looks a lot like the inside of a toaster. Fans circulate the air past the heaters, so the samples in the chamber are not exposed to radiant heat. It is very easy to add heaters and increase the speed and / or high limit of a chamber.
OTS chambers typically have a high temperature limits under 200°C. Here is a break-down of why a chamber's high temperature limit exists:
150°C: There are two reasons we may limit a chamber to 150°C. First, there may be a limitation of the materials used inside the chamber. Secondly, for extremely fast chambers, we may limit the high temperature to avoid problems with accidentally tripping overheat protection devices.
170-180°C: Most models stop at this temperature range. There is a risk of burning the oil inside the refrigeration's cooling coil.
Standards Implemented and met
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method
GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD – 202G – 103B humidity test
IEC60068-2-30 humidity temperature cycle
EIA - 364-31C wet resistance
GB/T2423.3 constant humidity heat test method
MIL-STD-810F-507.4 ,MIL-STD883C 1004.2
JESD22-A101-B-2004 ,JIS C60068-2-3-1987 ,
IEC68-2-03 ,ASTM D1735 , IEC 68-2-30 ect
Stability Temperature Humidity Test Chamber ClimaticTest Chamber Features:
1).The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2).Available in Chinese and English LCD touch screen, easy operation and program.
3).Able to display the relative date and information of the whole operating system in running mode, graphic display. precautions, maintenance and troubleshooting appear on the screen instantly.
4).The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5).The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
6).Water Supply adopts automatic watering System, Circulating water supply together with water filter.
