|Keyword:||Cable Wire Low Temperature Bending Tester||Brand:||OTS|
Lab Test Chamber 250KG,
Wire Low Temperature Bending Tester,
SS Lab Test Chamber
Cable Wire Low Temperature Bending Tester Wrapped Loops Of Specimen: 2~10 Loops.

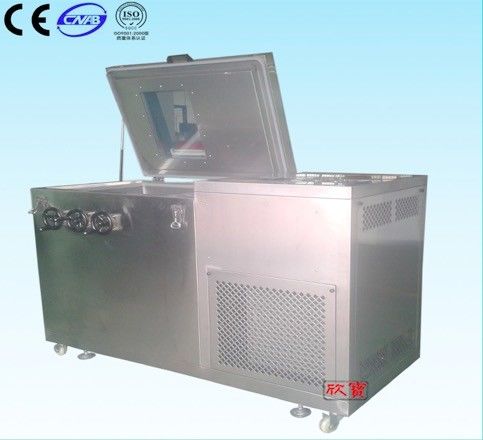

|Product name||Cable Wire Low Temperature Bending Tester|
|External size||102×145×107cm (W×H×D)|
(The difference between setting value and measured value of the controller)
(The temperature fluctuation is half of the difference between the highest and lowest temperatures measured at the center.)
(The average temperature of the display value of the temperature controller minus the average temperature measured at the center point.)
(The arithmetic average of the difference between the highest and lowest temperatures measured in each test)
|Heating rate||3℃/min adjustable (Nonlinear, no load)|
|Cooling rate||1℃/min adjustable (Nonlinear, no load)|
Wire wrap and weights
● Specimen diameter at low temperature: Ф2.5～Ф12.5mm.
● Wrapped loops of specimen: 2~10 loops.
● Axle center number: 4 sets(Each set can be equipped with 3 sizes), 4
samples can be tested at the same time.
● Rod diameter (Customization is acceptable):Diameter 12.7mm--4pcs;
Diameter 19.7mm--4pcs; Diameter 6.5mm--4pcs; Total 12pcs.
● Wights (Customization is acceptable): 1.5kg, total 4pcs
● Test or storage of flammable, explosive and volatile materials;
● Test or storage of corrosive substances;
● Test or storage of biological specimens;
● Test or storage of strong electromagnetic emission source
● Test or storage of specimens of highly toxic substances;
● Specimens that may be flammable, explosive, volatile, highly
toxic, corrosive and radioactive in the process of testing or storage.
