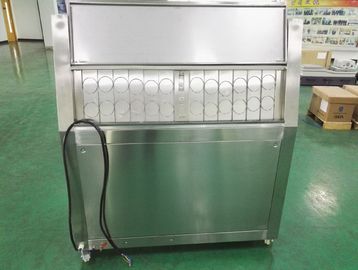

Thermal Aging UV Weathering Test Chamber Humidity Range ≥95% RH XB-OTS-UVA/uv light testing equipment/uv test chamber

Thermal Aging UV Weathering Test Chamber Humidity Range ≥95% RH XB-OTS-UVA/uv light testing equipment/uv test chamber
Thermal Aging UV Weathering Test Chamber Humidity Range ≥95% RH XB-OTS-UVA/uv light testing equipment/uv test chamber
video play

Large Image :  Thermal Aging UV Weathering Test Chamber Humidity Range ≥95% RH XB-OTS-UVA/uv light testing equipment/uv test chamber

Product Details:
Place of Origin: China
Brand Name: OTS
Certification: ISO/CE
Model Number: XB-OTS-UVA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export plywood case suitable for different and long distance transportation
Delivery Time: 20 days after payment
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 300 sets/month
Detailed Product Description
Machine Size: 500×1300×1460(D×W×H)mm Tamp Range: RT+10℃~+70℃
Temp Fluctuation: ±1℃ Temp Uniformity: ±3℃
Humidity Range: ≥95% R·H Distance Between Lamps: 70mm
Distance Between Samples And Lamps: 50±2 Mm Light Source: UVA-340 8 Pcs
Wavelength Of UV Light Range: 315~400nm Size Of Standard Specimen: 75×150mm (customized Available)
Net Weight: 150KG
High Light:

uv testing equipment

,

uv aging test chamber

ASTM D4587 UV Aging Testing Machine Thermal Aging Test Chamber for Plastic Product



Brief Introduction:
The UV Chamber for motorcycle industry can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.



Specifications:

Model XB-OTS-UV-A/B
Control system The man-machine interface, color LCD touch screen
Temperature range RT+10 °C~70°C
Temperature fluctuation less then ±3°C
Humidity range 75%~95%R.H
Center distance of lamp 65~70mm
Distance between sample and tube center 55 mm
Wave length

UV-B Wave (280~315nm) or

UV-A Wave (320~400nm)

Specimen size and quantity 75x150 mm 48 pcs
Water and consumption Distilled water, 8 liters / day
Studio size W1480xD560xH1450mm
Power AC 220V 50HZ 5KW
Tube quantity 8 lamps, imported from Canada
Weight 150KG




Uses:
UV Chamber for motorcycle industry is the most widely used UV Weathering tester in the world,there are thousands of ultraviolet aging testers coming into use. It has become the standard of the UV test, fit standards of ISO,ASTM,DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT,ect. It can simulate the damage of sunshine, rain, dew to the material quickly and exactly. Damage types including bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation need to be engenderd in months or years but can engender in a few days or weeks.



Designing Standard:

IEC61215, ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;prEN 1062-4, BS 2782;JIS D0205;SAE J2020,ect.





Characteristics:
1. UV Chamber for motorcycle industry is designed according to uses’ operation , it’s easy to operate, safe and reliable.

2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.

3. UV Chamber for motorcycle industry door rotating up does not interfere with the operation and the tester takes a very small space only.

4.It’s unique condensating system can be contented by tap water.

5.The heater is under the container rather than in the water, which is long life, easy to mainten.

6.The water level controller is outside the box, easy to monitor.

7. UV Chamber for motorcycle industry has truckles, convenient to move.

8.Computer programming is convenient, automaticly alarming when incorrect operated or faulted.

9. UV Chamber for motorcycle industry has irradiance calibrator to extend the life of the lamp tube(more than 1600h).

10. UV Chamber for motorcycle industry has Chinese and English instruction book, convenient to consult.

11.Divided into three types: common, light irradiance controlling, spraying



Thermal Aging UV Weathering Test Chamber Humidity Range ≥95% RH XB-OTS-UVA/uv light testing equipment/uv test chamber 0



Thermal Aging UV Weathering Test Chamber Humidity Range ≥95% RH XB-OTS-UVA/uv light testing equipment/uv test chamber 1

Techincal Parameter:
1.Accord with the standard of ISO,ASTM, DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT.
2.The condensing device simulated the outdoor moisture influence, can achieve 100% humidity
3.A electronic irradiance control system
4.Use the blackboard temperature sensor measuring temperature accurate, which can repeated the test results.
5.Humidity, condensation, water spray circulating consecutive testing.
6.Intensity of illumination has CR-10 calibrating pegging and automatic calibration procedures (American Q-the Lab patent technology) .
7.Sample quantity: 75mm×300mm 24pieces, 75mm×150mm 48 pieces.



Thermal Aging UV Weathering Test Chamber Humidity Range ≥95% RH XB-OTS-UVA/uv light testing equipment/uv test chamber 2
