|Model:||XB-OTS-150||Product Name:||Environmental Thermal Shock Test Chamber For Battery Hot Cold Impact Testing|
|Usage:||Thermal Shock Test Chamber||Shock Temperature ::||-40°C~150°C|
|System:||P.I.D+S.S.R+Micro-coemmputer Balanced Temperature Control||Refrigerant:||Environmental Friendly R23/R404A|
|Cooling Type:||Air Cooling Or Water Cooling||Test Method:||Air To Air|
environmental growth chambers,
benchtop environmental chamber

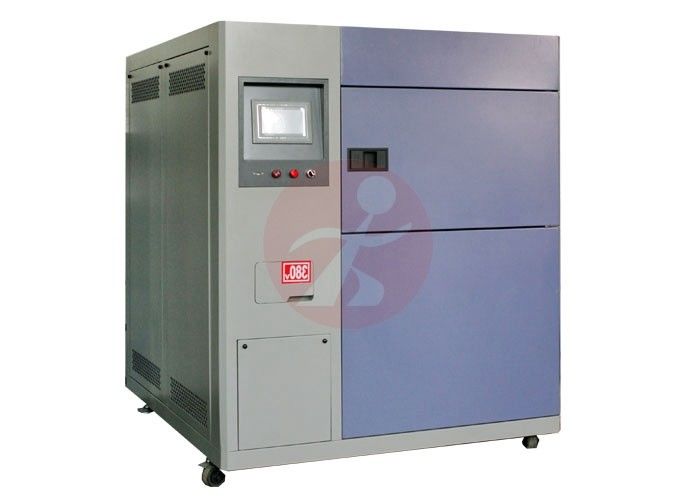

Environmental Thermal Shock Test Chamber For Battery Hot Cold Impact Testing
Environmental Thermal Shock Test Chamber For Battery Hot Cold Impact Testing that subjects a product to alternating extremes of high and low temperatures in order to observe changes in product characteristics and failure occurrence caused by different materials and their thermal expansion coefficients. Thermal shock chamber utilizes controlled areas for hot, ambient and cold temperatures. The product is moved from ambient to hot or ambient to cold zones. The chamber can be programmed to include a dwell period in the ambient zone if desired.It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be Used as a reference or basis for product improvement.
|Internal size WxHxD(cm)||36×40×35||40×50×40||50×60×50||60×75×50||80×85×60|
|External size WxHxD(cm)||148x175x160||150X175X165||155x185X165||165x200X175||185x210x185|
|Shock Temperature ragne||-65°C~150°C|
|Heating up time||RT~200°C about 35min|
|Cooling down time||RT~-70°C about 90min|
|Temp recover time/change time||≤ 5min|
|Temp control accuracy||±0.5°C / ±2.0°C|
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
GB11158 GB10589-89 GB10592-89
GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001
GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93
ASTM D1735 EIA - 364-59 IEC60068-2-1.1990
IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
Thermal Shock Chambers maintenance actions
1) a reasonable choice of installation location to install measures: dry, non-drip of rain and snow place.
2) inspection measures qualified by hand daily for insulation materials is broken steam pipe is blocked for technical confirmation and disposal technology.
3) the alarm can be installed as conditional steam leak or power-off state of alarm sound and light small device to facilitate the holding of risk freezing measures discovery and timely remediation.
4) instrument maintenance inspection measures by the area responsible for regular inspection by a predetermined inspection route. To check the insulation inspection of pipeline valve is normal, the incubator is normal, hydrophobic means is normal, thermal insulation material packaging is intact, electric heating power supply and other components is normal.
Why Choose OTS ?
1. Are you a Manufacturer ? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer of Climatic Test Chamber,Fast Shipping Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber .Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
