Payment & Shipping Terms:
|Host Material:||High Quality Steel Baking Varnish||Power Supply:||1phase AC220V|
climate control chamber,
walk in environmental chamber

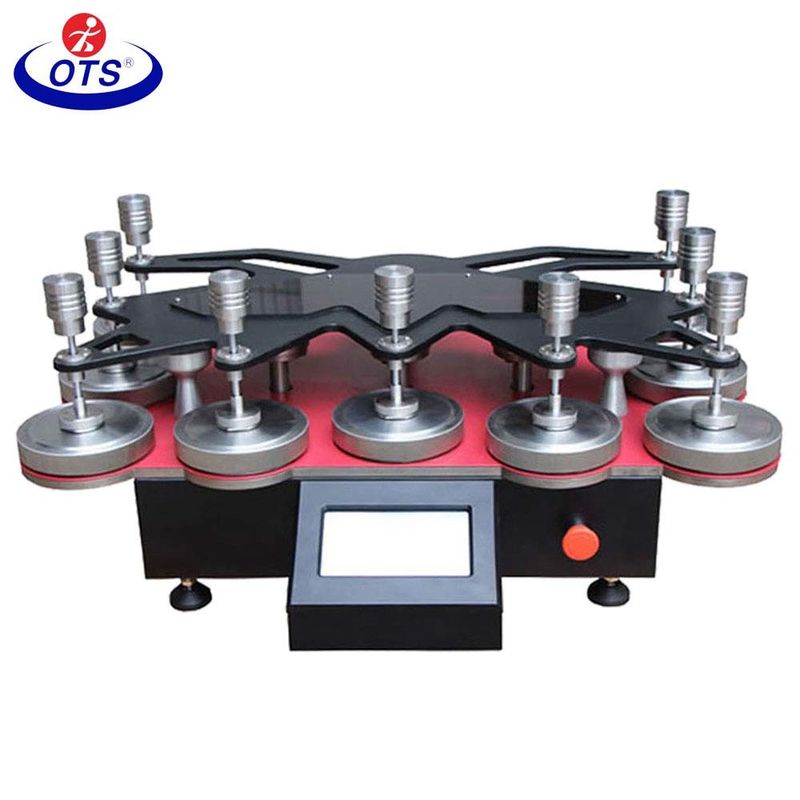

Textile Martindale Abrasion Tester determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradants at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.
The unique design of martindale tester allows removal of individual sample holders for examination without lifting the top motion plate. Martindale tester provides individual counters and parking function, interval time settable, large touch-screen display, Standard sample holders and 9 and 12kpa Weights are included.Martindale Tester is available with 4, 6, 8 or 9 test positions
Textile Martindale Abrasion Tester Specifications:
Drive system: PLC, programmable control with Touch-screen
Adjustable test speed
a) Max stroke of movement: 60.5+/-0.5mm
b) Weight of holder and spindle: 200+/-1g
a) Max stroke of movement: 24+/-0.5mm
b)Weight of holder and spindle: 155+/-1g
TF210A Martindale Abrasion And Pilling Tester-4 Heads
TF210B Martindale Abrasion And Pilling Tester-6 Heads
TF210C Martindale Abrasion And Pilling Tester-8 Heads
TF210DMartindale Abrasion And Pilling Tester-9 Heads
Standard Accessories (included):
Abrasion test (To ISO 12947-1)
a) Table specimen mounting Weight (2.5+/-0.5kg, 1Pc for both abrasion and pilling test)
b) Abrasion tester holder (Dia. 38 mm,Set of 4)
c) Small loading Weight (395+/-7 amount to holeder etc, set of 4)
d) Large loading Weight (595+/-7g amount to holeder etc, set of 4)
Pilling Test (To ISO 12945-2)
a) Linear adaptor. To convert to straight-line motion.
b) Sample Retaining Rings for pilling test (Pack of 4)
c) Pilling test holder (Dia. 90mm,set of 4)
d) Loading Weight (260+/-1g, set of 4)
Auxiliary device for specimen mounting
Optional orders (Excluded):
a) Test Specimen Cutter. (38mm diameter/12cm²) with cutting mat and spare blades.
b) Abradent Fabric & Backing Felt Cutter. (140mm diameter/154cm2) with cutting mat and spare blades.
c) Standard Wool Abradent Fabric SM25. 1.6M wide x 5M length – For abrasion test and pilling test(when utomati)
d) Standard Backing Foam. Width 1.5M, Length 0.5M.
e) Standard Backing Wool Felt Piece (woven) – 1m x 1.5m.
f) EMPA Photographic Standards for Pilling Test (3 x 4 knitted)
g) EMPA Photographic Standards for Pilling Test (3 x 4 woven)
h) SM 50 Photographs for Pilling Test IWS + ASTM.
EN ISO 12945-2/12947-1/12947-2/12947-3/12947-4, ISO 20344, ASTM 4966/4970, BS EN 388/530, BS 3424/5690, JIS L1096, DIN 53863/53865, GB/T 13775, SATRA TM31, IS 12673, IWSTM 112/196, IWTO 40-88, SFS 4328, NEXT 16, GMW15651, ISO 5470-2, M&S 17 / 19 / 19C, Next 18/18a/18b, GB/T4802.2/21196-1/21196-2, Wool Mark TM 112/196
Note: Textile Martindale Abrasion Tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
1. Are you a Manufacturer ? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are manufacturer of Climatic Test Chamber,Mini Temperature Chamber,Temperature Humidity Chamber Price .Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Contact Person: Leslie Lei
