filter material Mask PFE Tester 100C㎡ Medical Lab Testing Equipment

filter material Mask PFE Tester 100C㎡ Medical Lab Testing Equipment
filter material Mask PFE Tester 100C㎡ Medical Lab Testing Equipment filter material Mask PFE Tester 100C㎡ Medical Lab Testing Equipment

Large Image :  filter material Mask PFE Tester 100C㎡ Medical Lab Testing Equipment

Product Details:
Place of Origin: China
Brand Name: OTS
Certification: CE Certification
Model Number: Mask particulate filtering efficiency tester(PFE)
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for Stainless Steel Sand Dust Test Chamber For Electronic Products
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Name: Mask Particulate Filtering Efficiency Tester(PFE) Flow Range: (0-100) L / Min
Accuracy: 1% Filter Efficiency: (0.001-99.999)%
Test Area: 100C ㎡ (28c ㎡ Optional) Aerosol: Sodium Chloride (optional DOP, Dehs, Paraffin Oil, Corn Oil)
Aerosol Concentration: No More Than 30mg / M3 (salt), No More Than 30mg / M3 (oil) Power: AC220V / 50ha / 1.2kW
High Light:

100C㎡ Medical Lab Testing Equipment

,

PFE Medical Lab Testing Equipment

,

100C㎡ pfe test machine

Mask particulate filtering efficiency tester(PFE)



Product Description:



Mask particulate filter efficiency and air flow resistance tester consists of photometer, generator, air flow meter, sealed box and corresponding pipeline. It can be used for medical equipment inspection center, safety protection inspection center, drug inspection center, disease prevention and control center, textile inspection center, hospital, mask research and development and manufacturers, etc. to test the filtration efficiency and resistance of particulate matter such as masks and filter materials.



Features:



  1. The cold generation aerosol generator is used to produce continuous and stable aerosol particles, which is simple and convenient to add sol.
  2. Two sets of high-precision aerosol particle detection sensors are used to measure the upper and lower chambers at the same time.
  3. Configure the salt particle aerosol generator.
  4. Configure static charge neutralization device for aerosol particles.
  5. Configure high-precision digital gas flow sensor to measure gas flow accurately.
  6. Equipped with industrial temperature and humidity sensors to accurately measure the ambient temperature and humidity in real time. (test condition: 25 ± 5 ℃ 30 ± 10% RH)
  7. 7 inch touch screen, simple and clear operation.
  8. The pneumatic fixture is simple and clear to install and replace the sample.
  9. Suction and exhaust integrated mute vacuum pump, without external air source.
  10. High precision pressure gauge and flow regulating valve can adjust aerosol concentration.
  11. The micro printer can print test data.
  12. Intelligent configuration such as leakage protection, overload protection, power failure storage, etc. can effectively protect the safety of use.
  13. Special test software, which can be connected to the computer.



Specifications:



Name: Mask Particulate Filtering Efficiency Tester(PFE) Flow Range: (0-100) L / Min
Accuracy: 1% Filter Efficiency: (0.001-99.999)%
Test Area: 100C ㎡ (28c ㎡ Optional) Aerosol: Sodium Chloride (optional DOP, Dehs, Paraffin Oil, Corn Oil)
Aerosol Concentration: No More Than 30mg / M3 (salt), No More Than 30mg / M3 (oil) Power: AC220V / 50ha / 1.2kW



  1. Flow range: (0-100) l / min, accuracy 1%
  2. Filter efficiency: (0.001-99.999)%
  3. Test area: 100C ㎡ (28c ㎡ optional)
  4. Aerosol: sodium chloride (optional DOP, dehs, paraffin oil, corn oil)
  5. Aerosol concentration: no more than 30mg / m3 (salt), no more than 30mg / m3 (oil)
  6. Count median diameter: salt particles (0.075 ± 0.03) um, oil particles (0.185 ± 0.02) um
  7. Geometric standard deviation of particle size distribution: salt particle ≤ 1.86, oil particle ≤ 1.60
  8. Power: AC220V / 50ha / 1.2kW
  9. Product size: length * width * height (800 * 560 * 1080mm)



Pictures

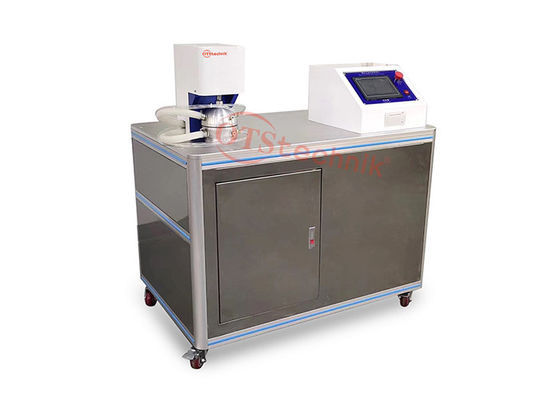

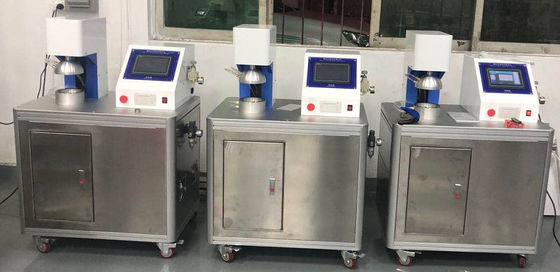

filter material Mask PFE Tester 100C㎡ Medical Lab Testing Equipment 0
