| Control Mode: | DC Electromagnetic Control Drop , Single Impact | Sample Size: | 300*300 |
|---|---|---|---|
| Test Height: | It Can Be Arbitrarily Set And Adjusted To Fall At A Certain Height | Volume: | 500 * 500 * 2000 Mm |
| Power Supply: | 220V 50Hz | Weight: | About 36KG |
| Power: | 2.5KW | Usage: | Drop Tester |
| High Light: | Ball Drop Impact Testing Machine,2000mm Height Impact Testing Machine,2.5kw impact testing equipment |
||

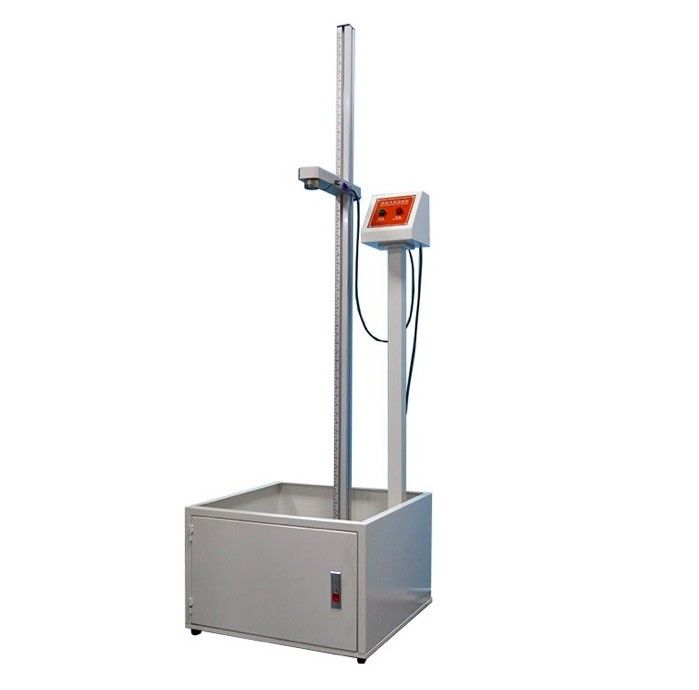

Ball Drop Impact Test Machine Impact Height Range 0-2000mm Adjustable
Introduction
The drop ball impact testing machine adopts dc electromagnetic control mode, and the steel ball is automatically sucked up under the electromagnetic chuck. Press the drop button, and the steel ball is released instantly by the chuck. The steel ball will be tested in free fall and impact the surface of the specimen.Drop height can be adjusted up and down, and posted with a height ruler, you can know the drop height.The machine is adjusted at a certain height with a steel ball of specified weight to make it fall freely.Apply to plastic, ceramics, acrylic, glass, electronics, electrical appliances, household appliances, plastic, newsletters and other finished products or components in encountered in the process of installation after collision and design, to assess whether the product structure is bad or not enough test, weight of steel ball at a certain regulation, to a certain height of free fall, hit the test materials, components, product damage was observed.
Technical Parameters
| Model | XB-OTS-LQ300 |
| Impact height range | 0-2000mm adjustable |
| Control mode | DC electromagnetic control drop, single impact |
| Sample size | 300*300 |
| Test height | It can be arbitrarily set and adjusted to fall at a certain height |
| Control box | Separate control box is easy to operate |
| Volume | 500 * 500 * 2000 mm |
| Power supply | 220V 50Hz |
| Steel ball specifications | 33g 50g 64g 95g 112g 134g 175g 1 each |
| Weight | about 36KG |
| Power | 2.5KW |
Precautions and maintenance
1. Align the center of the steel ball with the center of the fixture and fix it.
2. The steel ball may jump out of the box after falling, please pay attention to safety.
3. Do not scratch the surface of the machine with sharp tools.
4. Wipe the machine after each test.
5. Clean the ball and put it back in the box.
6. After the test, please turn off the power.
Main Features-Drop ball testing machine/test / impact tester
1.The Plastic Drop Ball Impact Test machine adopts dc electromagnetic control mode, put the ball under
the magnetic chuck, steel ball automatic sucked, press down fall, chuck instantaneous release of steel
ball, steel ball will be free fall to impact specimen surface.
2.Drop height can be adjusted up and down with altitude scale, can be learned that ball drop height.Weightof the steel ball to regulation, in a certain height, free fall, hit the sample, depending on the degree of
damage.
3.Plastic Plastic Drop Ball Impact Test Machine for fastness plastics, ceramics, acrylic, glass fibers and
other materials and the test paint.
Test principle-Drop ball testing machine/test / impact tester
The machine adopts dc electromagnetic control mode, the steel ball on the steel ball automatic sucked under magnetic chuck, press down fall, chuck instantaneous release of steel ball, steel ball will be free fall test, impact specimen surface.The drop height can be adjusted up and down, and with a height gauge, the height of the drop can be obtained.
