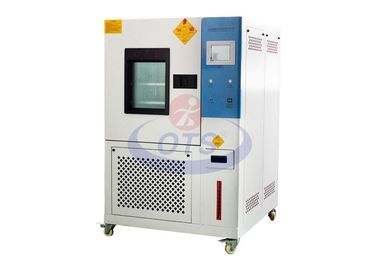

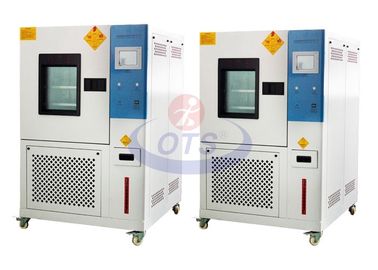

0.5ppm~25ppm Environmental Test Chambers Spray Flow Mixed Gas Corrosion Test Chamber

Structure
The shell is made of SUS316 stainless steel sheet; The structure is compact and the appearance is bright and lustrous. The inner and most components are welded by SUS316 stainless steel plate.

Foot and Support
4 sets of four angle mobile positioning casters

Door
Double door structure, inner box door adopts tempered glass.
Corrosion resistant silicone rubber seal.

Controller
7 inch color touch-screen control

Air Inlet Control
PLC controls the flow.

System Introduction
1.The equipment is designed with two boxes. The temperature and humidity inside are made by external air conditioning cabinet.
2.A built-in air system: refrigeration system, heating and humidity system. The system make qualified temp and humidity and inlet mixed gas into teeter chamber, then send to test chamber after processing.
3.The exhaust filtration system (Acid-base neutralizing chamber; Vapor filter chamber and Adsorption chamber) is proven that effectively filter acid gas.
4.To achieve uniform diffusion of inner chamber, the air enters to the bottom firstly then passes through deflector.
5.The exhaust port of the equipment is connected with the outside, so there is no need to be careful about the accumulation of residual gas in the laboratory.
6.The inlet port of the corrosive gas is Φ3mm.

Control System
1.Temperature and humidity controller adopts 7 inch "fiber" large screen - color LCD programmable microcomputer, PID control, SSR output operation. The operation simple: easy to edit the program; interface can simultaneously display the temperature and humidity, hydrogen sulfide, dioxide, nitrogen dioxide, sulfur dioxide, nitrogen dioxide, Flow value of chlorine gas.
2.Accuracy: 0.1 ℃ (display range), resolution: ± 0.1 ℃
3.Temp sensor: PT100 platinum resistance thermometer
4.Control mode: heat balance temperature regulation and humidity control, all electrical appliances adopt (Schneider) series products.
5.With the function of automatic calculation, the temperature and humidity change conditions can be immediately corrected.
6.The language is English and Chinese optional. The real-time running curve can be displayed on the screen with 100 sets of 100 segments, each section can be circulate 999 steps. The maximum value of each period is 99 hours and 59 points.
7.With RS-232 or RS-485 remote communication interface, it can design programs on the computer, monitor the test process and perform automatic switchboard functions.
8.The controller has the function of automatic screen saver, which can protect LCD screen better in long time running state.
9.Equipped with LAN port, the device can be connected to the computer to monitor and control the temperature and humidity status of the equipment in real time.
10. H2S, SO2, NO2, CL2, 4 kinds of low consistency gas flow meters.
11.Configuration of exhaust emission system: residual gas discharged to outside through special treatment.
12.Configure the gas leak alarm device.
13.Equipped with various gas pressure relief valves.
14.Imported electromagnetic valves and air oil-water separators.
15. All kinds of anti-corrosive electromagnetic valves;
16. executive components: Schneider AC contactor, small relay, solid state relay.

Refrigeration and Dehumidification System
1.Compressor: French Tecumseh. Ir can keep the temperature 25 ℃ and humidity 75% in summer.
2.Cooling method: Air cold.
3.Refrigerator: R404A
4.The whole pipeline is ventilated and pressurized by 48H.
5.Separated heat and cooling system.
6.Internal spiral copper tube, slope evaporator;
7.Dry filter, refrigerant flow window, repair valve, oil separator, solenoid valve and liquid storage tank are imported original parts.

Protection System
The machine is equipped with overheated protection, underphase / reverse phase protection, refrigeration system overload, over-pressure of the refrigeration unit, the timing of the whole equipment, the other leakage, the operation instructions, and the automatic shutdown after the fault alarm.
