Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-120 | Product Name: | Salt Spray Corrosion Environmental Test Chambers For Metal Plating / Coatings |
|---|---|---|---|
| Laboratory Temperature: | NSS.ACSS 35°C ±1°C/ CASS 50°C | Test Chamber Temp: | 35±1°C For Salt Spray Method (NSS ACSS), 50±1°C For Corrosion-resistant Testing Method(CASS) |
| Controller: | OTS Designed Controller With LCD | Temp: 35±1°C For Salt Spray Method (NSS ACSS), 50±1°C For Corrosion-resistant Testing Method(CASS) S: | 47±1°C For Salt Spray Method (NSS ACSS), 63±1°C For Corrosion-resistant Testing Method(CASS) |
| Design Standards: | IEC68-2-11,JIS,H8502,ASTM B-117-97,ISO9227,CNS3627,3885,4159,7669,8886,JIS D-0201 | Usage: | Salt Spray Corrosion Test Chamber |
| Safety Protection Devices: | Current Discharge Protection, Over Pressure Protection,over Temperature Protection, Over Load Fuse Protection | Place Of Origin: | China |
| High Light: | temperature controlled chamber,benchtop environmental chamber |
||

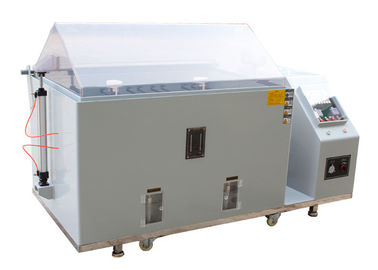

Salt Spray Corrosion Environmental Test Chambers for Metal Plating / Coatings
Introduction
Salt Spray Corrosion Environmental Test Chambers for Metal Plating / Coatings is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test Ka: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
Specification
| Model | XB-OTS-60 | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x120x140 | 270x150x150 |
| Inside temp | Brine test method(NSS ACSS)50°C±1°C Corrosion resistance test method. | ||||
| (CASS)50°C±1°C | |||||
| Brine temp | 35°C±1°C 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 480L | 800L | 1000L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
| Test room relative humidity | 85%RH or more | ||||
| PH | 6.5~7.2 or 3.0~3.2 | ||||
| Spray method | Programmable spray (including the continuous spray interrupted spray) | ||||
| Protective system | 1.The over temperature of whole machine. | ||||
| 2.Automatically cut the power off when the water level of test chamber or pressure bucket is below the standard. | |||||
| 3. The entire machine is set with a timer and alert of overflow, electronic leakage, light circuit. | |||||
| Warranty | 12+2month(in view of transportation ,Customs be 2month),maintenance for lifelong | ||||
Design Standard:
Thermostatic control can be set under CNS, JIS, ASTM standard:
Ⅰ Humidity and salt spray test: NSS,ACSS
1) Temperature of test box: 35℃±1℃
2) Temperature of pressure bucket: 47℃±1℃
Ⅱ Corrosion resistance test: CASS
1) Temperature of test box: 50℃±1℃
2) Temperature of pressure bucket: 63℃±1℃
Supply system: the pressure is 1kg/cm²
Spray measurement 1-2mI(mI/80cm²/h)(average in 16 hours)
Spray way: Continuously.

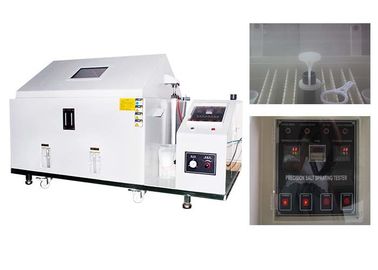

Product Presentation
1. Salt Spray Test Chamber System Diagram
2. Combined Cycle Tester System Diagram
Please feel FREE to contact us if you have any needs.
Custom-made ASTM B117 NSS AASS CASS Salt fog Cabinet , salt spray test chamber
