Product Details:
Payment & Shipping Terms:
|
| Model Numbe: | XB-OTS-1000P | Product Name: | 1000L IP Test Equipment With Talcum Powder IPX5 /X6 Sand And Dust Test Chamber |
|---|---|---|---|
| Dust Concentration:: | 2kg/m3~5kg/m3, Should Be Replaced | Dust Type: | Powdered Cement, Dry Talcum Powder |
| Blower: | Centrifugal Fan | Test Time Continuous: | 1-9999(S,M,H)adjustable |
| Sieves Hole Size: | 75um | Wire Netting Wire: | 50um |
| Air Pressure: | 86~106kpa | Power Supply: | AC380V, 50/60Hz, Three Phase |
| High Light: | thermal test chamber,temperature cycling chamber |
||

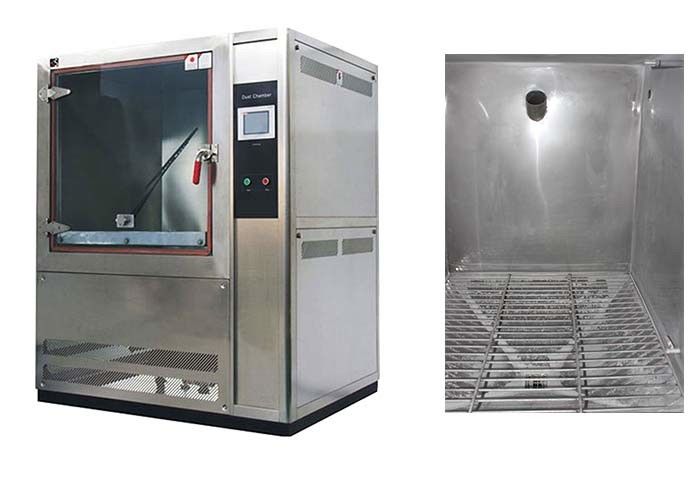

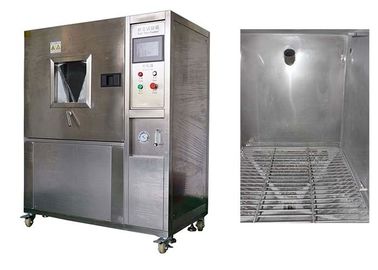

1000L IP Test Equipment With Talcum Powder IPX5 /X6 Sand And Dust Test Chamber
Working principle of chamber:
Centrifugal fan is the main source of dust movement, the high-speed operation of the fan so that dust into the fan due to the centrifugal force of the role of fan blades into the dust pipe dust. The wind speed of the pipeline is usually more than 7.5m / s (too low wind speed will make the dust precipitate in the pipeline will cause the test tube can not work). The dust line was sprayed from above into the test chamber and passed through the sample at a rate of> 2 m / s. Sand and dust chamber As the lower part of the working box for the funnel, it can precipitate down the dust into the lower part of the 72 × 50um filter. Through the vibrating motor vibration, less than the diameter of the filter hole in the dust and centrifugal fan sucked so back and forth.
Uses
IP5X IP6 Dust Test Chamber is applied to all mechanic, electric, electronic, electric chemical and mechanical and electric equipments, it is used to evaluate whether equipment can resistivity and storage, running or not in air of dry sand or dust. It is applied to IEC-529, GB4208-93, GB2423.37-89 and GJB150.12
Specifications :
| Model No | XB-OTS-800P | XB-OTS-1000P | XB-OTS-1500P | ||
| Inner chamber size (W*H*D mm) | 800*800*800 | 1000*1000*1000 | 1000*1000*1500 | ||
| Metal screen stencil OD | 50um | ||||
| Standard line-line distance | 75um | ||||
| Fossil meal usage | 2kg ~ 4kg/m3 | ||||
| Vibration hit time | 0 ~ 99H59M,adjustable | ||||
| Circular air flow time | 0 ~ 99H59M,adjustable | ||||
| Dust collection | 25gm±5gm within 5 mins | ||||
| Control system | |||||
| Controller | LCD touch screen controller, TEMP880 | ||||
| Vacuum system | Equipped with a pressure gauge, air filter, pressure regulating triple, connecting tube ( Reprovision vacuum pump) | ||||
| Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | ||||
| Dust heating system | Stainless steel mica sheet heating jacket | ||||
| Safety Devices | Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller | ||||
Test Standard
1. IEC - 529 dustproof test method
2. GB4208-93 dustproof test method
3. GB2423.37-89 dustproof test method
4. GJB150.12 dustproof test method
We are here to help you. Services available:
Replacement manuals
If you have an OTS chamber , we will do our best to help you in whatever way we can.
Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.
Please feel FREE to contact us if you have any needs.
