Product Details:
Payment & Shipping Terms:
|
| Product Name: | 10m³ - 100m³ High Precision Electronic Stability Walk In Test Chamber For Automobile Testing | Temperature Control Range: | -60°C ~ 110 °C |
|---|---|---|---|
| Controller: | Programmable LCD Touch Screen | Inner Chamber Materials: | SUS304 |
| External Chamber: | R Material: Plate+painting Or Stainless Steel | Color: | Request |
| Refrigerant: | Environmental Friendly R23/R404A | Humiditity Range: | 10%~98%RH |
| High Light: | walk in environmental chamber,walk in climatic chamber |
||

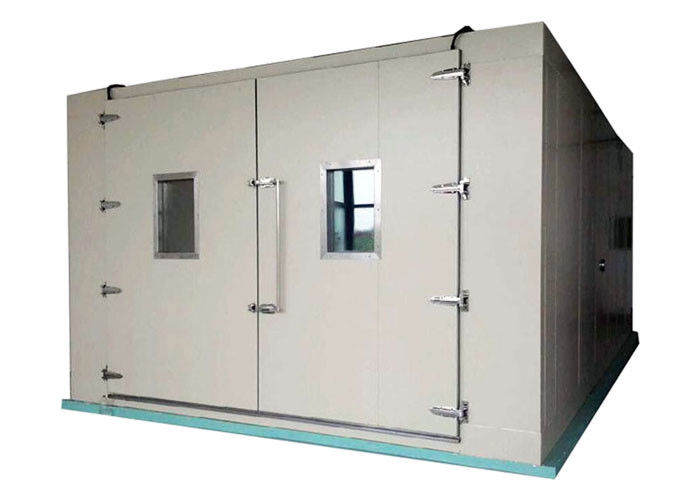

10m³ - 100m³ High Precision Electronic Stability Walk in Test Chamber for Automobile Testing
Introduction:
10m³ - 100m³ High Precision Electronic Stability Walk in Test Chamber for Automobile Testing serves as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etcOTS manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
The OTS-Series walk-in temperature and climate test chambers are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.
| Model | XB-OTS-800E |
| Volume | 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements |
| Temperature range | -60 °C ~+110 °C |
| Humidity range | 20%~95%R.H. |
| Accuracy/uniformity | ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
| Accuracy/volatility | ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
| Cooling time | 5.0 °C /minute |
| Inside material | SUS#304 Stainless Steel |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Cooling system | Water-cooled / two-stage compressor |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| Accessories | recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| Controller | German Siemens PLC or TH-900C Korea or TEMI |
| Compressor | France's Tecumseh Brand or Germany |
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Applications:
Features:
1.Realize temperature constant value control and program control;
2.The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3.With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.
4.Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5.Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6.Customize size/customize indicators/customize various optional features
Standard Reference:
| GB11158 | GB10589-89 |
| GB10592-89 | GB/T10586-89 |
| GB/T2423.1-2001 | GB/T2423.2-2001 |
| GB/T2423.3-93 | GB/T2423.4-93 |
| GB/T2423.22-2001 | IEC60068-2-1.1990 |
| MIL-STD-810F-507.4 | MIL-STD883C 1004.2 |
| JIS C60068-2-3-1987 | IEC68-2-03 |
| ASTM D1735 | JESD22-A101-B-2004 |
| JESD22-A103-C-2004 | JESD22-A119-2004 |
Package and shipment:
(1). Strong standard wood case, inner plastic films wrapped for -20℃ to 120℃ Precision Walk in climate test chamber for Accelerated Ageing Test.
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
