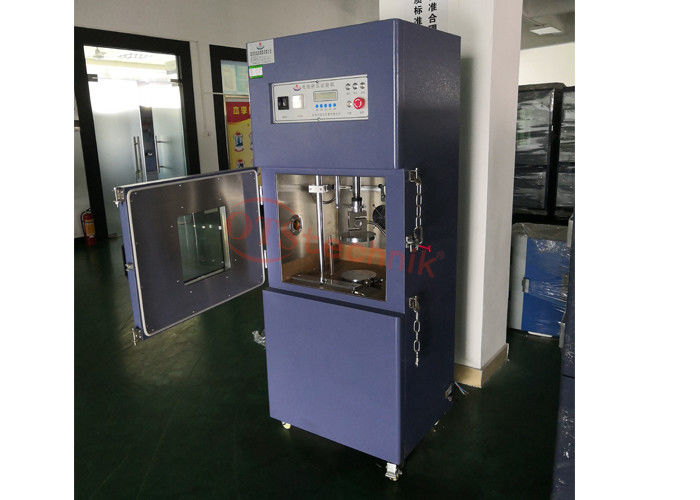

200KG Cylinder Driven Battry Steel Nail Penetrating Test Machine

200KG Cylinder Driven Battry Steel Nail Penetrating Test Machine
200KG Cylinder Driven Battry Steel Nail Penetrating Test Machine
video play

Large Image :  200KG Cylinder Driven Battry Steel Nail Penetrating Test Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OTS
Certification: CE ISO
Model Number: XB-664
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units (Min. Order)
Price: Negotiable
Packaging Details: Strong wooden case for battery inner short circuit testing machine
Delivery Time: 20 days after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 145 Unit/Units per Month
Detailed Product Description
Drive Mode: Cylinder Drive Materials Of Explosion-proof Tank: Galvanized Sheet With Baking Finis
Power Supply: AC 1 Phase 220V 60/50Hz Penetrating Force: 150~200KG
Force Display: Pressure Sensing And LED Display Test Stroke: 150mm
Steel Nail: Dia. 2mm-Dia. 8mm High Temperature Resistant Dimension Of Controller Box:: 300*260*170mm
Penetrating Speed: 10-40mm/s
High Light:

battery testing equipment


impact test apparatus

Battery Nail Penetration Tester,Phone Battery Nail Penetration Tester




Using steel nail penetrating the battery, the tester is used to check safety capability of battery, and the battery is qualified without fire, and explosion. The nail penetrating test is processed under temperature of 20℃±5℃. The specimen battery has thermocouple whose contact spot is located on the largest surface.Place the battery on the fuming cupboard, using stainless nail with diameter of 2-8mm to penetrate the centre position of largest side of battery at speed of 10mm/s-40mm/s and keep for 5s.





1 .The wire enclosed with metal fire-proof cover, which is available to prevent the flame during testing process.
2 .Lighting system is designed to observe the internal testing process;
3 .Nail Penetration/Crush Velocity with controllable range of 10~80mm/s;
4 .Nail Penetration/Crush Force controllable within range from 250N to 13KN ,meet different standards;
5 .Wire hole provides a possibility to test internal temperature or air pressure while vent hole with air blower can discharge the exhaust air.
6 .Control system employs independent control cabinet & separated with the test chamber with a distance 1-2 meter, which can reduce the noise and improve safety.



  • Lithium battery
  • Nickel battery
  • Ni-MH battery
  • Lead-acid battery
  • Mobile Phone Battery



• 208V- 240VAC standard, 500W
• To use the unit at 110 V, please order 500W transformer,
Control Panel
• Driving Force is adjustable by air cylinder valve.
• Digital Display for impact force on control panel
• Minimum 100 PSI air compressor with 2 gallons tank is required to drive the machine

( Air Compressor is not included, Please order it at local or order separately by clicking underlined)
Penetration Force
• 0 ~ 500 kg
• Suitable for single cell and small battery pack.
Steel Nails
• Seven steel nails (2mm, 3mm, 4mm, 5mm,6mm, 7mm & 8mm diameter) are included in the standard package,

• Other diameter nails can be ordered upon request.
Penetration Speed
0~80mm/s adjustable
Dwell Time
0-9999 seconds
Working temperature
RT ( room temperature )

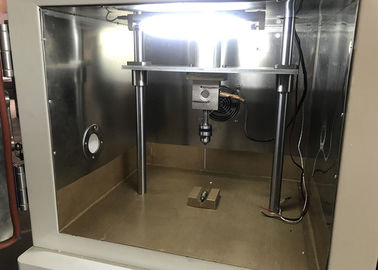

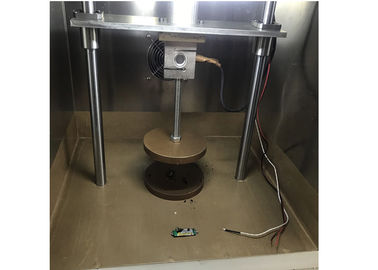

Operation Chamber
• Chamber inside is made of stainless steel to resist fire and easy to clean.

• There is a front observation window which is made of double layers high strength glass.

• Chamber size: 16" x16 "x 16" , ( 400 x 400 x 400mm )

• One clamp driven by compress air can hold sample tightly

• Max. sample size can be accommodated: 8"x8"x8" (200 x 200x 200 mm ).

• Please click the picture to the left to view details.
Features on the back
• Easy electrical connection with the control stage

• One exhaust fan is built inside of the chamber to remove smoking.

• Air venting port is 145mm in diameter, which must be connected to vent port in your lab via a tube ( not included, please order at local hardware store )

• Quick connection for 8mm O.D compresses air tubing

• Two side ports allow electrical cables pass through

• Pressure release door prevents pressure built up inside the chamber
Machine dimension
36"L x 20"W x 58" H (920x 510x1470 mm )
4 mobile wheels are installed at the bottom and allow an easy move.
Net weight
330 lbs ( 150Kg)
Shipping weight
600 lbs
Shipping Dimension
47" x 40" x 71"
One year limited with lifetime support
CE certified
Application Note
Note: The max. capacity of Li-Ion batteries to be tested in the chamber should be limited to 4.2V@ 40Ah for single cell or 160Wh for battery pack without protection circus


Model XB-OTS-660
Steel nail Dia. 2mm—Dia. 8mm high temperature resistant
Space between battery surface and nail point 150mm
Penetrating speed 10—40mm/s
Penetrating force 150~200KG
Force display Pressure sensing and LED display
Test stroke 150mm
Drive mode Cylinder drive
Structure of tester Box-type to be explosion proof, fire proof, anti-corrosion and easy to clean
Dimension of explosion proof tank 450×750×550mm(W×H×D)
Materials of explosion-proof tank Galvanized sheet with baking finish
Dimension of controller box
