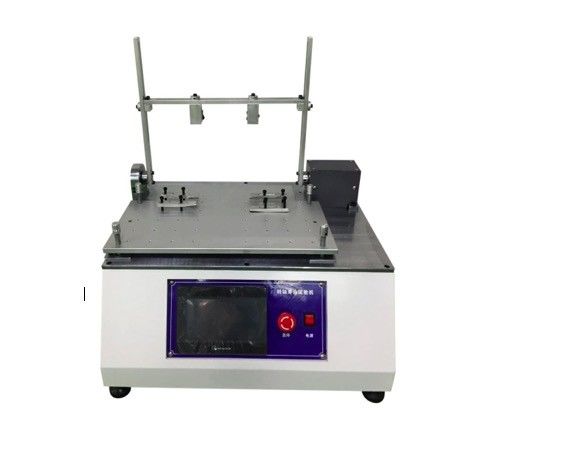

20 Times/Min Touch Screen Notebook Flip Life Tester

20 Times/Min Touch Screen Notebook Flip Life Tester
20 Times/Min Touch Screen Notebook Flip Life Tester

Large Image :  20 Times/Min Touch Screen Notebook Flip Life Tester

Product Details:
Place of Origin: Dongguan China
Brand Name: OTS
Certification: CE
Model Number: Notebook Flip Life Tester
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for ISO 4918 Floor Caster Tester for PVC Flooring Testing
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Key Words: Notebook Flip Life Tester Dimension: 1000×500×900mm
Test Speed: 2-20 Times / Min Fixed Fixture: Fixed Fixture:
Working Surface Height Adjustable: 0-60 Mm Max Dimension Of Specimen: Range 0-20 Inches
Brand: OTS Origin: Donguan China
High Light:

20 Times/Min Notebook Flip Life Tester

,

Touch Screen Notebook Flip Life Tester

,

20 Inches Laptop Flip Life Tester

Working Surface Height Adjustable 0-60 Mm Notebook Flip Life Tester ​




Product Description



The laptop flip life tester is suitable for the NOTE-BOOK laptop computer. After opening the cover
multiple times, whether the shaft still has the holding force or the shaft resistance becomes large, the
plastic body is damaged. This machine adopts high-end touch LCD screen for full Chinese display, easy
to use, all adjust the numerical control power, angle, speed and frequency. The hardware adopts
stepping motor + imported PLC + LCD screen, with high precision, low noise and long life.




Technical Parameters:


1. Max dimension of specimen: range 0-20 inches
2, Test angle: 5-180 degrees (touch screen can be set)
3, Angle display: touch screen display, the minimum display of 0.1 degrees.
4, Test speed: 2-20 times / min (touch screen can be set)
5, The number of trials: 0-99999999 times (can be preset, power-off memory function)
6, Test mode: manual (debug mode) and automatic (test mode) can choose
7, Control system: seven-inch TFT true color touch screen + PLC + precision motor
8, Fixed fixture: adjustable fixture
9, working surface height adjustable: 0-60 mm
10, Protection function: emergency stop function, automatic homing function 11, working power: 1 phase
AC220V, 50HZ
12, Dimension:1000×500×900mm(W*D*H)


Features:


1. The notebook computer flip life testing machine is treated with electrostatic baking paint. The table
top and fixture are all treated with pure aluminum oxidation. The whole machine is designed reasonably,
the structure is tight, the operation is safe, stable, accurate and meets the requirements;
2, notebook computer flip life test machine uses touch screen setting interface, PLC is the control system,
driven by precision motor, easy to test, more in line with test requirements;
3, notebook computer flip life test machine angle, speed, frequency and other parameters can be preset,
user-friendly design, more practical.
