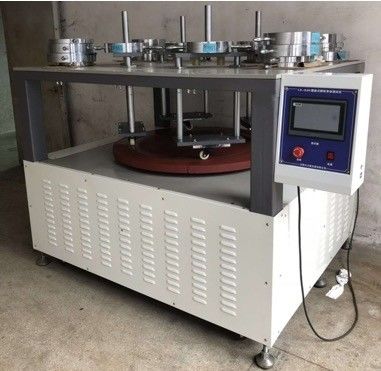

2KW Disk Diameter 1000mm​ Caster Life Testing Machine

2KW Disk Diameter 1000mm​ Caster Life Testing Machine
2KW Disk Diameter 1000mm​ Caster Life Testing Machine

Large Image :  2KW Disk Diameter 1000mm​ Caster Life Testing Machine

Product Details:
Place of Origin: Dongguan China
Brand Name: OTS
Certification: CE
Model Number: Caster Life Testing Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong standard wood case, inner plastic films wrapped for ISO 4918 Floor Caster Tester for PVC Flooring Testing
Delivery Time: 20 working day after getting the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit/Units per Month
Detailed Product Description
Obstacle: 4 Pcs (can Be Loaded Or Not) Weights: 400kg
Speed Range: 0.05~5Km/h (Adjustable) Caster Height Test Range: Diameter:25~250 Mm
Pallet Lifting Range: 50-300mm Distance Control Range: 0.05—99.9km
Power: 1 Phase,220V,50Hz (Customized); 2.0KW Key Words: Caster Life Testing Machine
High Light:

Caster Life Testing Machine


2KW Life Testing Machine


GB/T14688-93 Life Tester


Pallet Lifting Range 50-300mm Caster Life Testing Machine / Disk Diameter 1000mm​


Description :

The ‘dynamic test’ and ‘long distance walking test’ can be carried out by using a disc as the driving wheel to the caster, which can be controlled by a computer with functions like speed adjustment, speed display, walking distance, walking time, and forward rotation test, reverse testing and forward testing. The test concludes: long-distance movement test, dynamic test, etc. The load is imposed by weight superimposed direct pressure to simulate the test effect of its products.


The Main Technical Parameters:


Loading method Analog weight vertical loading
Control mode


PLC + computer control, distance display,

time display, electric test

Obstacle 4 pcs (can be loaded or not)
Disk diameter 1000mm
Weights 400kg
speed range 0.05~5Km/h (Adjustable)
Running direction

3 modes

(Corotation; Inversion; Corotationa and Inversion)

Caster height test range Diameter:25~250 mm
Caster fixture

2 sets in total

One set of thread(4pcs); one set of flat type(4pcs)

Pallet lifting range 50-300mm
Absolute error of the measured distance ≤±0.5m
Distance control range 0.05—99.9km
Absolute error in measurement time 0.1s
Dimensions Approx.140*120*140cm(L*W*H)
Weight 500KG(weights not included)
Power 1 Phase,220V,50Hz (Customized); 2.0KW
Equipment accessories

A set of maintenance tools; User manual(Quality Guarantee included)

Weights; Hexagon wrench





Standards: GB/T14688-93

Test Principle: A disc rotation is used as the driving wheel to simulate the test.

Data Printed: Time + distance, load (manual input), and speed; test data results are displayed in report form, can be entered manually.
